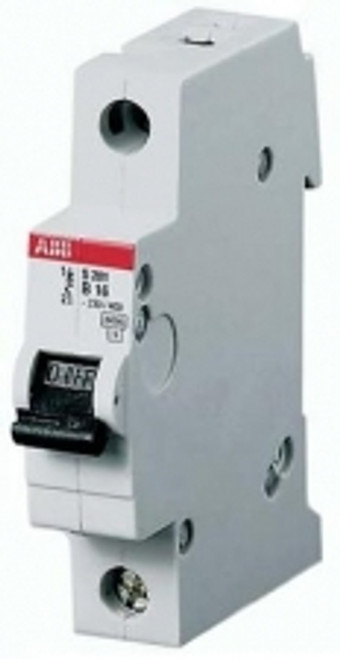

ABB S201-K25 Mini Circuit Breaker S200 277Vac

System pro M compact S200 small circuit breakers are current limiting. They consist of two different tripping mechanisms, the delayed thermal tripping mechanism to protect against overloading and the electromechanic tripping mechanism to protect from short circuit. They are available in different characters (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 regulate with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. To save 50% space bottom-fitting auxiliary contact can be mounted on S200.

ABB S201-K25 Features:

• 1 Pole
• 25 Amps
• 480Y/277Vac
• Thermal Magnetic Trip
• K Curve
• 6KA Interrupt Current Rating
