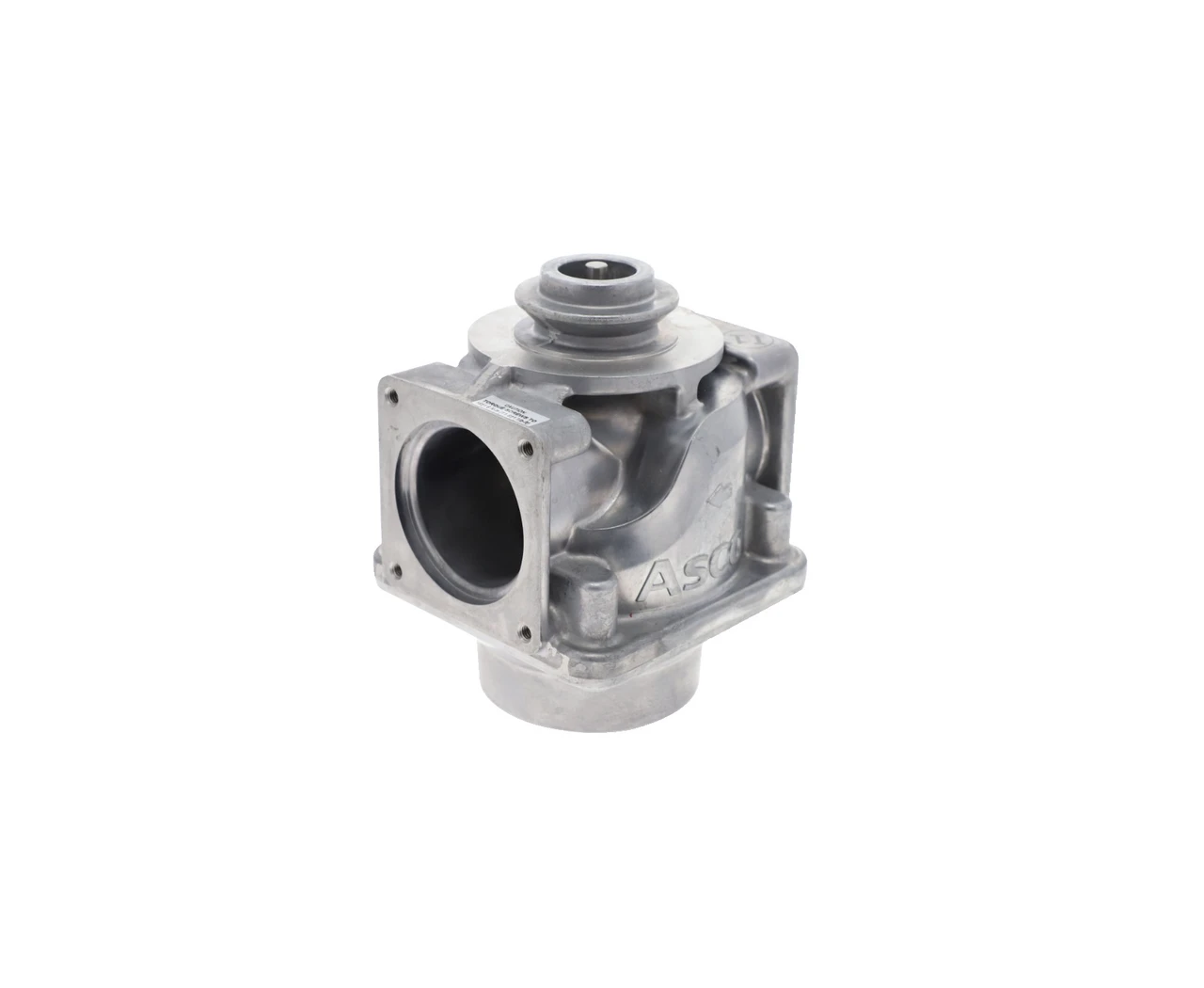

Asco 8158A116X1X0000 Valve Body (Hydramotor), 2"

These normally closed globe type valve bodies are designed for on/off or proportional control of commercial or industrial gas burners. The 8158 is designed exclusively for use with the AH Hydramotor actuator. The AH Hydramotor valve consists of two assemblies; the valve body and the AH Hydramotor actuator. The 8158 valve is a push-to-open type body for on-off or low-high-off control of fuel gas when mounted to an AH(E) Hydramotor actuator. The 8158 valve body is available in aluminum body, 3/4" thru 3" pipe sizes.

Asco 8158A116X1X0000 Features:

• 2" NPT Port
• 2-3/32" Orifice
• Quick Opening Trim
• Cv= 74
• Gas Capacity: 3,956,500 Btu/hr
• Fluid Temp: -40 to 150 Deg F
• Operating Pressure Differential: 0- 15 Psi
• 303SS Valve Stem
• NBR Discs

Technical Literature:

Asco 8158 Series Data
