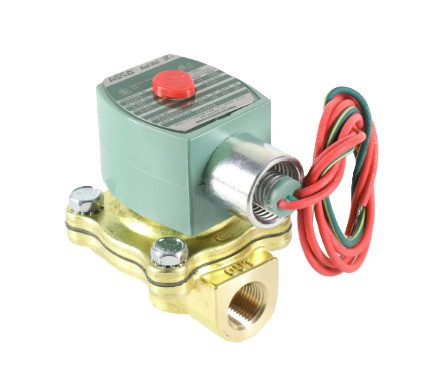

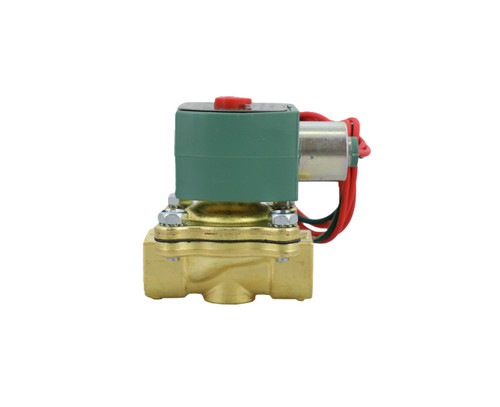

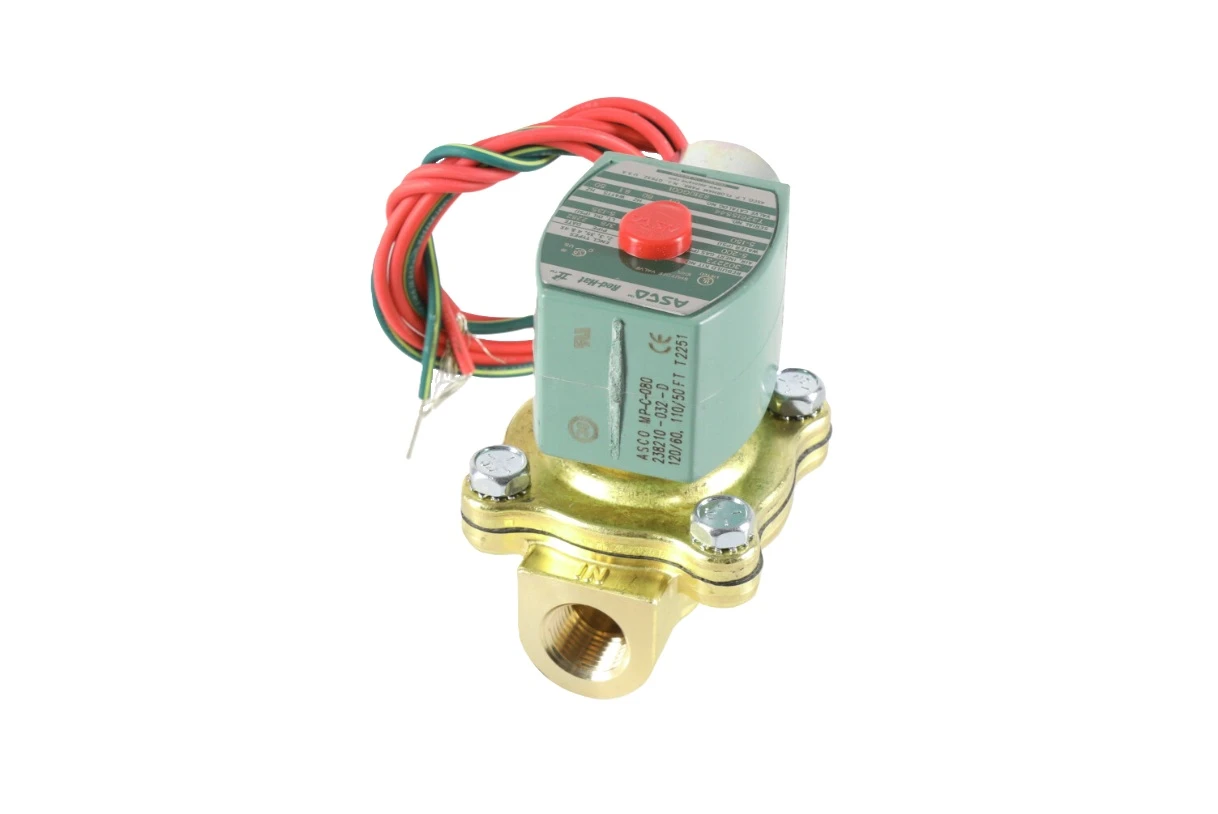

Asco 8210G001-120/60 Solenoid Valve, 2-Way, 3/8"

Asco 8210G001-120/60 Specifications:

• 3/8" NPT Ports
• 120Vac/60Hz
• 110Vac/50Hz
• 5/8" Orifice
• Cv= 3.00
• Wattage Rating: 6.1/F AC // 11.6/F DC

Features:

• Operating Pressure Differentials:
• AC= 200psi(air inert gas), 150psi(water)135psi(light oil) and a temperature(F) of 180.
• DC=125pis(air inert gas),100psi(water), 100psi(light oil) and a temperature(F) of 150.
• Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
• High Flow Valves for liquid, corrosive, and air/inert gas service
• Industrial applications include:
  • Car wash - Laundry equipment
  • Air compressors - Industrial water control
  • Pumps
