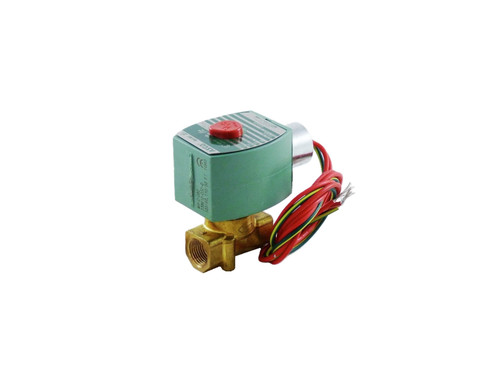

Asco 8263H200-120-60 Solenoid Valve, 2-Way, 3/8"

Direct Acting General Service Brass Body with NBR Disc and NEMA 4X Enclosure.

Asco 8263H200-120/60 Specifications:

• 3/8" NPT Port
• 120Vac/60Hz
• 5/32" Orifice
• 0.52 Cv
• Normally Closed
• Watt Rating: 10.1/F AC // 11.6/H DC

Features:

• Used for air/inert gas, water, and light oil (up to 300 SSU) services at moderate temperatures
• Max Fluid Temp is 180 degrees F
• Max Coil Wattage is 10.1.
• Brass body
• NBR and Cast UR Seals and Discs
• 305 SS Core Tube

Technical Literature:

Asco Technical Literature

** NON-RETURNABLE **
