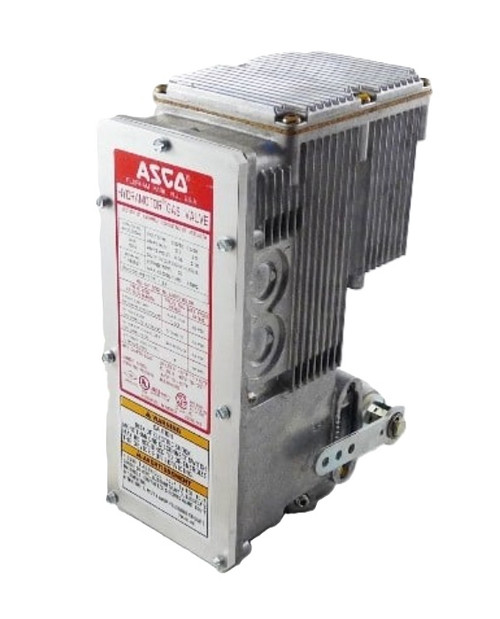

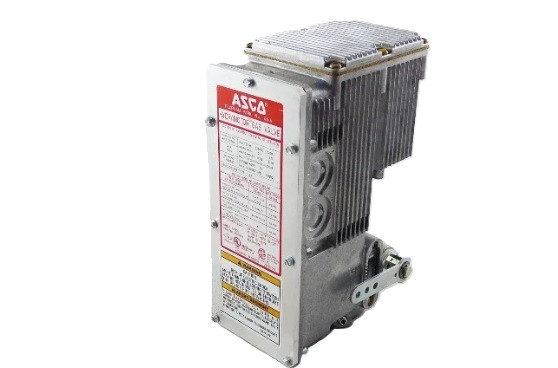

Asco AH2E102A4 Hydramotor Actuator, 120V

The AH2E Hydramotors are push-type, self-contained, electrohydraulic linear actuators which extend when powered and retract by spring force upon power interruption. AH2E Hydramotors provide a fast spring return shutoff time of one second or less. When the actuator is mounted to a V710 gas valve, position indicators on both sides of the actuator show the open or closed position of the valve. The AH2E Hydramotor/V710 gas valve combination provides main line gas control for a wide range of applications, including boilers, furnaces, ovens and all types of industrial and commercial burners. It is available in either a slow or fast opening construction.

Asco AH2E102A4 Features:

• On-Off Slow Opening
  • 26 Second Max
• Watertight
• Type 4 Enclosure
• With Damper Shaft and Arm

REPLACES OLD PN#AH2D102A4
