Asco AH2E212A4 Hydramotor Actuator 120V

Asco

No reviews

$1,773.47

SKU:: AH2E212A4
Condition:: New
Availability:: Usually Ships in 2 to 4 Weeks

Asco AH2E212A4 Hydramotor Actuator 120V

7-12 Second

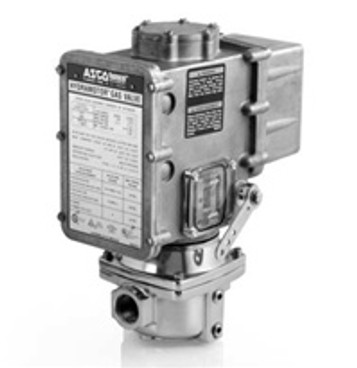

The AH2E Hydramotors are push-type, self-contained, electrohydraulic linear actuators which extend when powered and retract by spring force upon power interruption. AH2E Hydramotors provide a fast spring return shutoff time of one second or less. When the actuator is mounted to a V710 gas valve, position indicators on both sides of the actuator show the open or closed position of the valve. The AH2E Hydramotor/V710 gas valve combination provides main line gas control for a wide range of applications, including boilers, furnaces, ovens and all types of industrial and commercial burners. It is available in either a slow or fast opening construction.

This Item replaces PN#AH2A112A4

Power Requirement: 220 VA max.

Closing Time: One second max.

Opening Time:

Fast Opening: 14 seconds max.

Slow Opening: 26 seconds max.

Note: Opening time is double between -30°F and -40°F ambient.

Opening time increased 20% when operating on 50Hz.

Technical Information:

Asco Technical Literature
