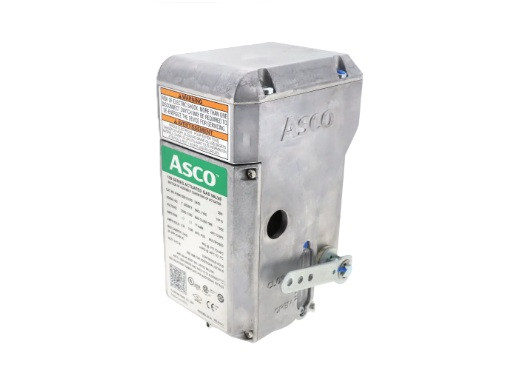

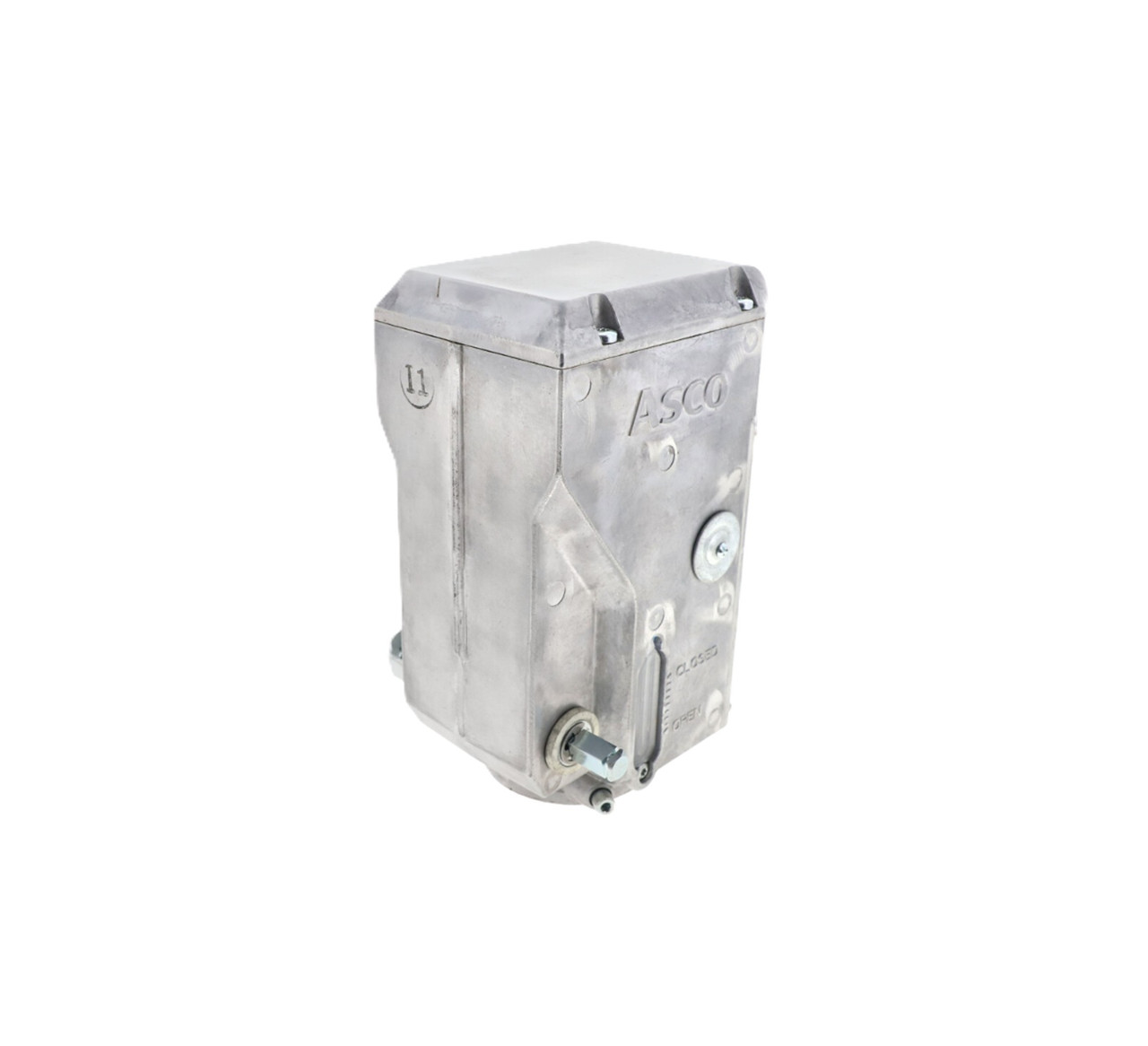

Asco P159A120X1X11F0 Hydramotor Actuator 120V

The P159 Hydramotors are push-type, self-contained, electrohydraulic linear actuators which extend when powered and retract by spring force upon power interruption. P159 Hydramotors provide a fast spring return shutoff time of one second or less. The P159 Hydramotor/8158 gas valve combination provides main line gas control for a wide range of applications, including boilers, furnaces, ovens and all types of industrial and commercial burners. It is available in either a slow or fast opening construction.

ASCO P159A120X1X11F0 Features:

• Aluminum
• Fast Opening
• 1/2" Coduit Connection
• 26 Second with Damper Arm
• Type 1 Nema
• 110-120Vac
• 50-60Hz

REPLACES OLD PN#AH2D102A4

Technical Information:

Asco 159 Series Data
