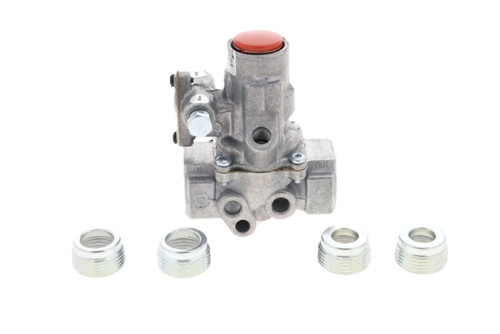

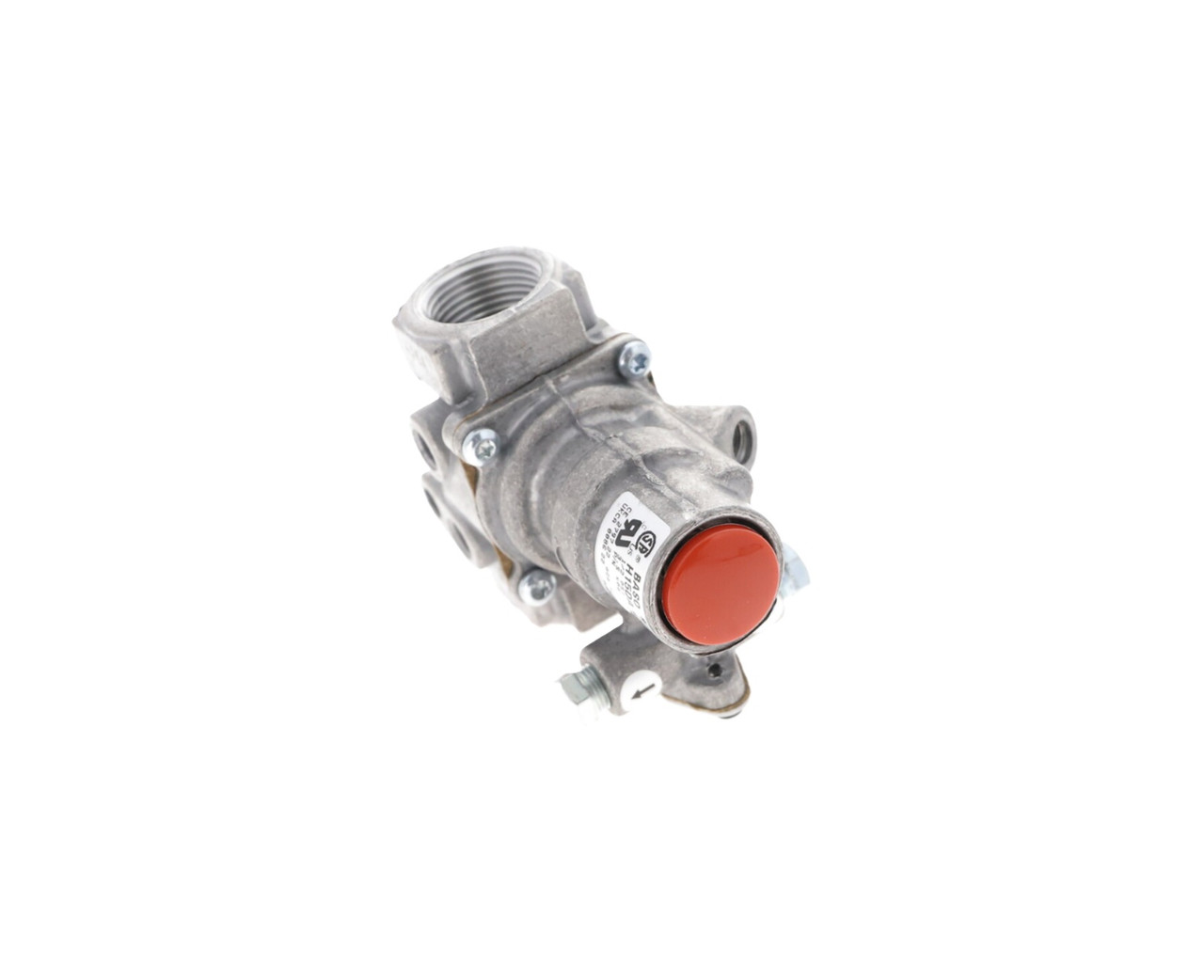

Baso H15DA-3C Automatic Safety Pilot Valve, 3/4" with Bushings

The H15 Series pilot valves provide safe lighting and complete shutoff of pilot and main burner gas in the event that the flame heating the thermocouple is extinguished. They are designed for standing pilot applications and can be used with natural gas and Liquefied Petroleum (LP) gas, at pressures up to 0.5 psi. Typical applications include commercial cooking equipment, heaters, kilns, dishwashing equipment, industrial ovens, and similar applications.

Honeywell H15DA-3C Features:

• 0.5 psi Rated Inlet Pressure
• Aluminum Valve Body
• Used with Natural, LP, and LP Gas-Air Mixtures
• 335,000 BTU/hr, 98kW Capacity
• No Rotor B Valve
• Internal Pilot Gas Flow
• Standard Power Unit

in. - 3.17

mm - 80.5

in. - 2.25

mm - 57

in. - 3.93

mm - 100
