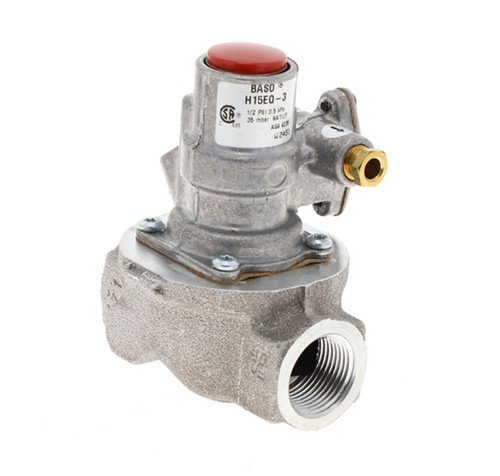

Baso H15EQ-3C Automatic Safety Pilot Valve, 3/4"

The H15 Series pilot valves provide safe lighting and complete shutoff of pilot and main burner gas in the event that the flame heating the thermocouple is extinguished. They are designed for standing pilot applications and can be used with natural gas and Liquefied Petroleum (LP) gas, at pressures up to 0.5 psi. Typical applications include commercial cooking equipment, heaters, kilns, dishwashing equipment, industrial ovens, and similar applications.

Features:

• 0.5 psi Rated Inlet Pressure
• Aluminum Valve Body
• Used with Natural, LP, and LP Gas-Air Mixtures
• 480,000 BTU/hr, 144kW Capacity
• No Rotor B Valve
• External Pilot Gas Flow
• Standard Power Unit

Technical Literature:

in. - 3.50

mm - 89

in. - 3.00

mm - 76

in. - 4.30

mm - 109.3
