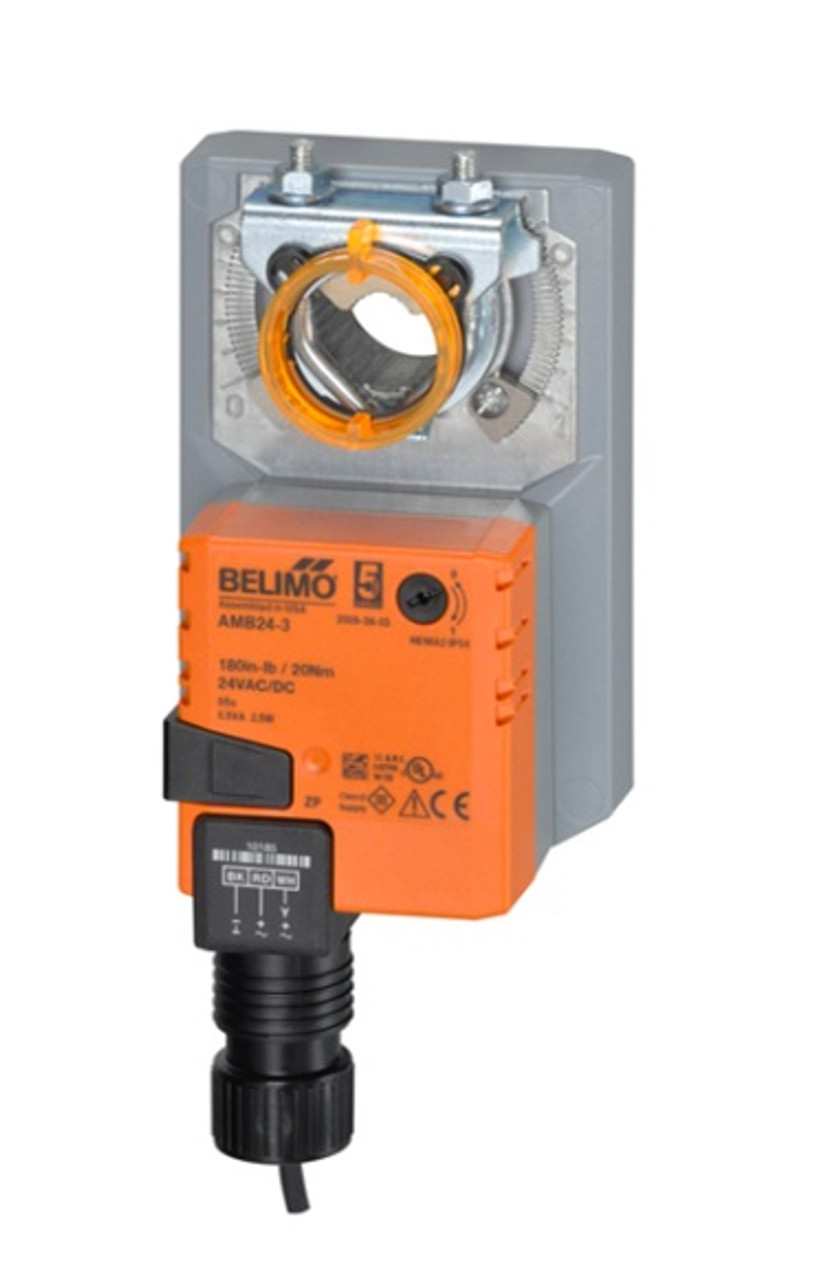

Belimo AMB24-3 Damper Actuator, Non Fail-Safe

On/Off, Floating Point Air Damper Actuator

The AMB24-3 series is not provided with a limit switch because it does not require one. It is protected electronically against overload. The anti-rotation strap provided with the actuator will prevent lateral movement. The actuator 95° of rotation and a visual indicator indicates position of the actuator. When arriving to the damper or actuator end position, the actuator automatically stops.

Belimo AMB24-3 Features:

• 24V AC/DC
• 2.5 Watt Power Consumption
• 0.5 Watt Rest Power Consumption
• 5.5 VA Transformer
• 180 in-lb Torque Motor
• Mounted directly to Damper shaft
• IP54, NEMA 2
• Mechanical Position Indication, 30-65mm Stroke
• External Push Button Manual Override

Technical Literature:

Belimo AMB24-3 Data Sheet
