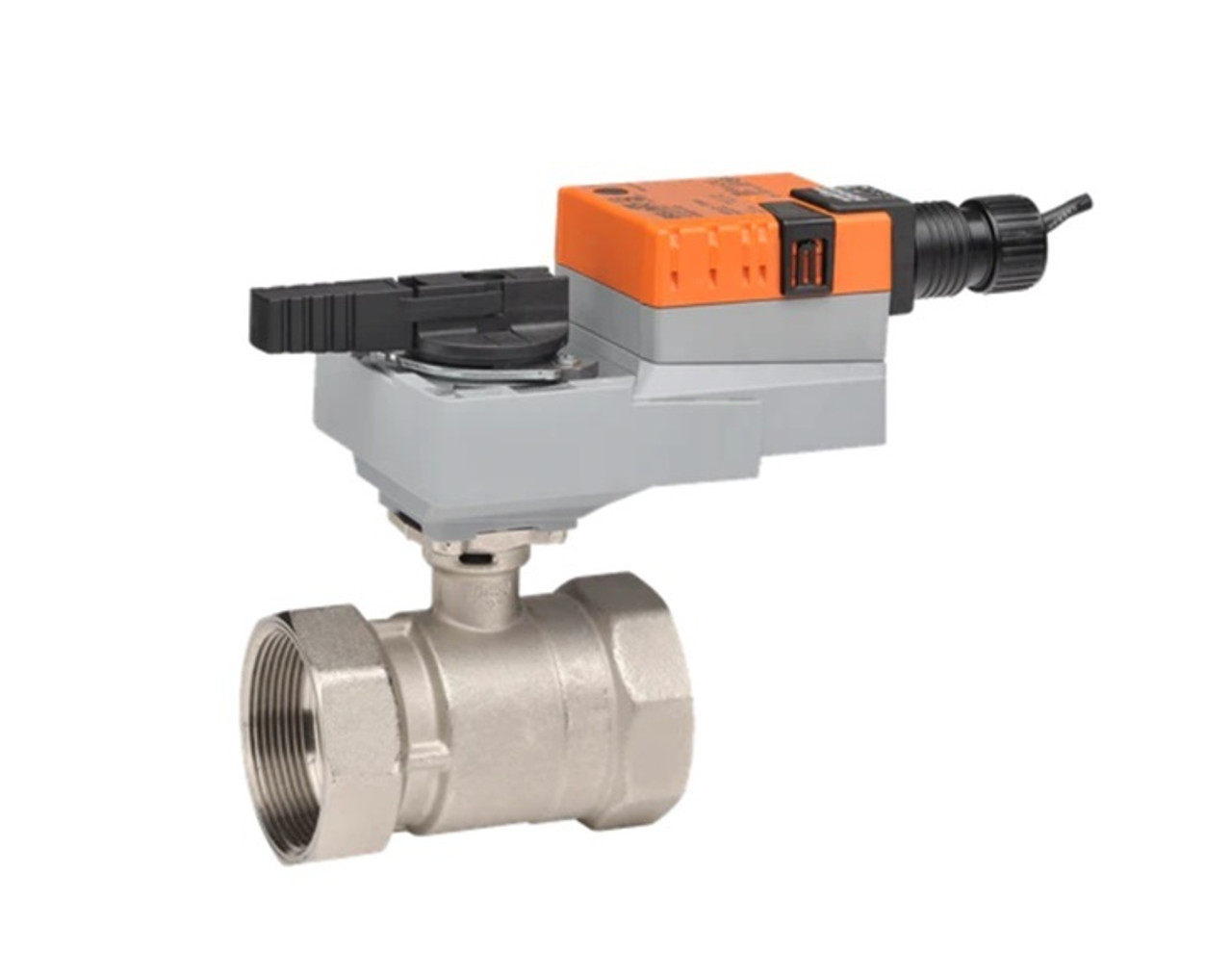

Belimo B209+LRQX24-1 CCV Control Valve, 1/2" NPT

Non-Spring Return ON/OFF Actuator, 24V AC/DC, 18 GA Plenum Cable with 1/2" Conduit Connector

Belimo B209+LRQX24-1 Features:

• 1/2" NPT Valve Body
• 0.8Cv
• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 13 Watt Power Consumption
• 1.5 Watt Rest Power Consumption
• 23VA Transformer Sizing
• Mechanical Position Indication
• External Push Button Manual Override
• IP54, NEMA 2

Technical Literature:

Belimo B209+LRQX24-1 Data Sheets
