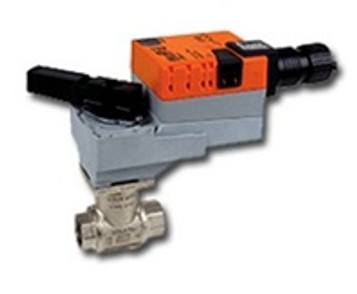

Belimo B209+LRX120-3 2-Way CCV, SS Trim, 1/2", Cv 0.8" CCV with Stainless Steel Ball and Stem

Non-Spring Return Floating Actuator, 100-240Vac, 50/60Hz, Non-Fail Safe, On/Off

Belimo B209+LRX120-3 Features:

• Chilled or hot water, 60% glycol
• Flow Characteristic: Equal percentage
• NPT Female Ends
• Body-forged Brass, Nickel Plated
• PTFE Seats
• 2 Watt Power Consumption
• 0.5 Watt Rest Power Consumption
• 4VA Transformer Sizing
• Mechanical, Pluggable Position Indication
• External Push Button Manual Override
• IP54, NEMA 2

Technical Literature:
