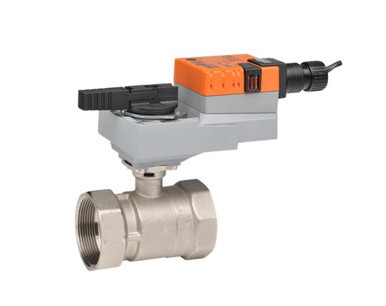

Belimo B209+LRX24-3-S 2-Way CCV, SS Trim, 1/2", Cv 0.8" CCV with Stainless Steel Ball and Stem

Non-Spring Return Floating Actuator, 24V AC/DC, with (1) built-in Auxiliary Switch

Belimo B209+LRX24-3-S Features:

• 1/2" NPT
• 2-Way
• 0.8 Cv
• Chilled or hot water, 60% glycol
• Flow Characteristic: Equal percentage
• NPT Female Ends
• Body-forged Brass, Nickel Plated
• PTFE Seats
• 1.5 Watt Power Consumption
• 0.2 Watt Rest Power Consumption
• 2.5VA Transformer Sizing
• Mechanical, Pluggable Position Indication
• External Push Button Manual Override
• IP54, NEMA 2

Technical Literature:

Belimo B209+LRX24-3-S Data Sheets
