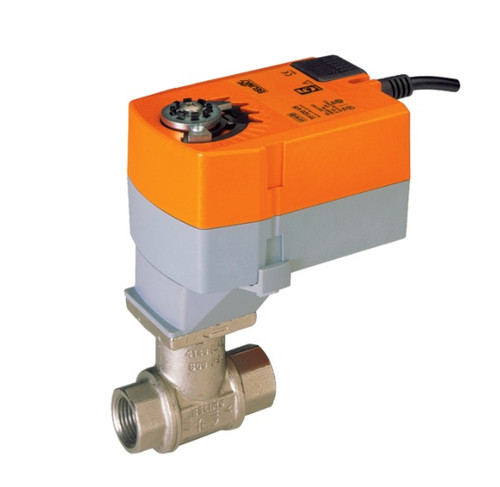

Belimo B209-TFRB24-3 2-Way CCV, SS Trim, 1/2", Cv 0.8" CCV with Stainless Steel Ball and Stem

Spring-Return Actuator, AC/DC 24V, Open/close IP 42, running time spring; 25 s control open/close with single-wire contact connection PVC cable 1m spindle driver universal spindle clamp direction of rotation reversible

Belimo B209-TFB24-3 Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• ON/OFF
• Floating Point
• 2.5 Watt Power Consumption
• 1 Watt Rest Power Consumption
• 4 VA Transformer Sizing
• 22 in-lb Torque Motor
• Mechanical Position Indication
• Original Part #B209+TFB24-3

Technical Literature:

Belimo B209+TFRB24-3 Data Sheets
