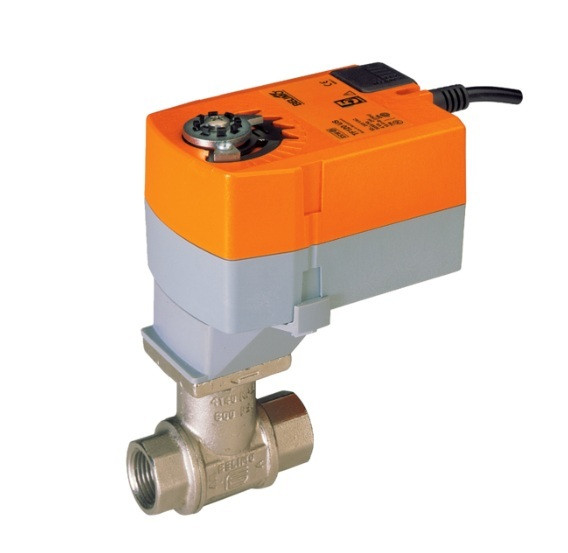

Belimo B209+TFRB24-3-S 2-Way CCV, SS Trim, 1/2", Cv 0.8" CCV with Stainless Steel Ball and Stem

Spring Return Floating Actuator, 24V AC/DC, On/Off

For use with modulation or On/Off, fail-safe control of dampers in HVAC systems.

Belimo B209+TFRB24-3-S Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 2.5 Watt Power Consumption
• 1 Watt Rest Power Consumption
• 4 VA Transformer Sizing
• Mechanical Position Indication
• IP42, NEMA 2
• Original Part #B209+TFB24-3-S

Technical Literature:

Belimo B209+TFRB24-3-S Data Sheets
