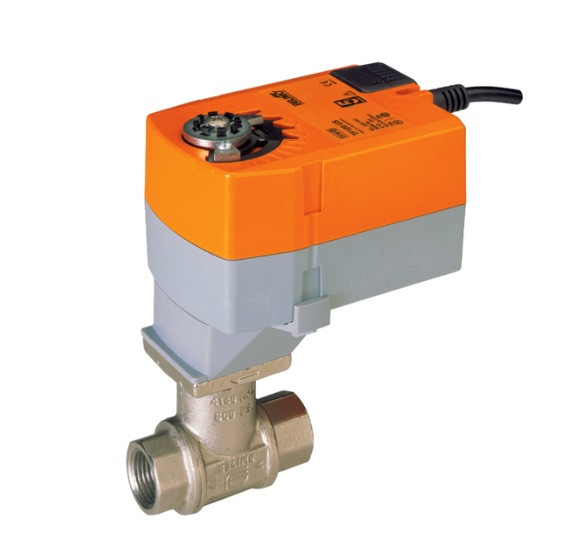

Belimo B209+TFRB24-SR 2-Way CCV, SS Trim, 1/2", Cv 0.8" CCV with Stainless Steel Ball and Stem

Spring-Return Modulating Actuator, AC/DC 24V

Belimo B209+TFRB24-SR Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 2-10 Vdc Feedback Signal
• 2 Watt Power Consumption
• 1 Watt Rest Power Consumption
• 4 VA Transformer Sizing
• Mechanical Position Indication
• 22 in-lb Torque Motor
• IP42, NEMA 2
• Original Part #B209+TFB24-SR

Technical Literature:

Belimo B209+TFRB24-SR Data Sheets
