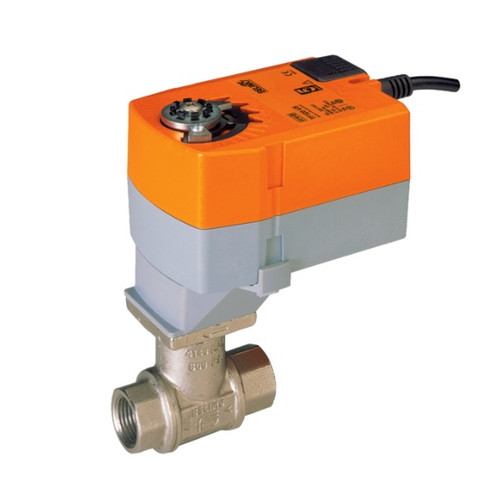

Belimo B209+TFRB24-SR-S 2-Way CCV, SS Trim, 1/2", Cv 0.8" CCV with Stainless Steel Ball and Stem

Spring Return Modulating Actuator, 24V AC/DC, 2-10Vdc Feedback Signal

Used as a fail-safe, modulating control of dampers in HVAC systems

Belimo B209+TFRB24-SR-S Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 2 Watt Power Consumption
• 1 Watt Rest Power Consumption
• 4 VA Transformer Sizing
• Mechanical Position Indication
• 22 in-lb Torque Motor
• IP42, NEMA 2
• Original Part #B209+TFB24-SR-S

Technical Literature:

Belimo B209+TFRB24-SR-S Data Sheets
