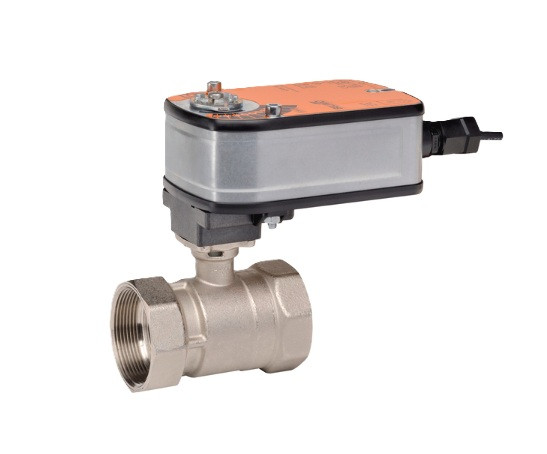

Belimo B210+LF24 2-Way CCV, SS Trim, 1/2", Cv 1.2" CCV with Stainless Steel Ball and Stem

Spring Return Actuator, 24V, 35 in-lb (4Nm) On-Off

The Belimo LF24 Actuator is for ON/OFF, fail-safe control damper HVAC applications.

Belimo B210+LF24 Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 5 Watt Power Consumption
• 2.5 Watt Rest Power Consumption
• 7 VA Transformer Sizing
• Mechanical Position Indication
• 35 in-lb Torque Motor
• 75 s Running Time
• IP54, NEMA 2
