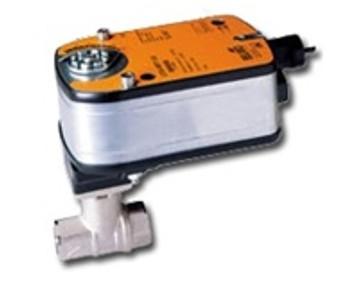

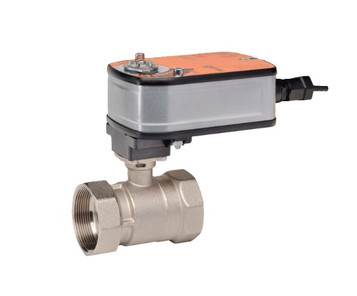

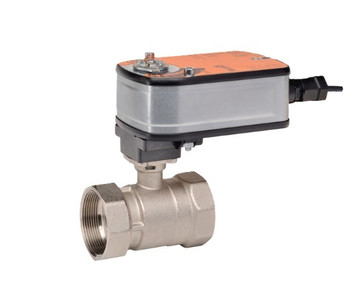

Belimo B210+LF24-SR 2-Way CCV, SS Trim, 1/2", Cv 1.2" CCV with Stainless Steel Ball and Stem

Spring Return Actuator, 24V, 35 in-lb (4Nm) 2-10VDC

Belimo B210+LF24-SR Features:

• 1/2" Valve Body
• 1.2 Cv
• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 2.5 Watt Power Consumption
• 1 Watt Rest Power Consumption
• 5 VA Transformer Sizing
• Mechanical Position Indication
• 35 in-lb Torque Motor
• 2-10Vdc Feedback Signal
• IP54, NEMA 2

Technical Literature:

Belimo B210+LF24-SR Data Sheets
