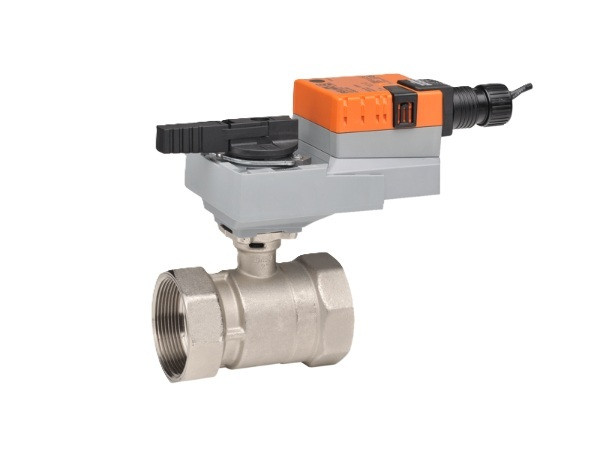

Belimo B210+LRB24-MFT 2-Way CCV, SS Trim, 1/2", Cv 1.2 CCV with Stainless Steel Ball and Stem

Non-Spring Return Modulating Actuator, 24V AC/DC, 2-10 VDC Feedback Signal

Belimo B210+LRB24-MFT Features:

• 1/2" Valve Body
• 1.2 Cv
• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 2.5 Watt Power Consumption
• 1.2 Watt Rest Power Consumption
• 5 VA Transformer Sizing
• Mechanical, Pluggable Position Indication
• External Push Button Manual Override
• IP54, NEMA 2

Technical Literature:

Belimo B210+LRB24-MFT Data Sheets
