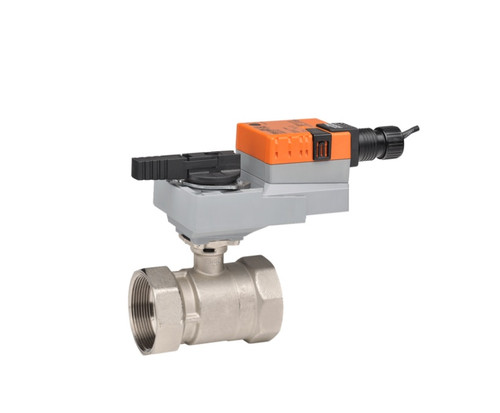

Belimo B210+LRB24-SR 2-Way CCV, SS Trim, 1/2", Cv 1.2" CCV with Stainless Steel Ball and Stem

Non-Spring Return Modulating Actuator, 24Vac, 2 to 10 VDC input, 1m plenum cable single unit, conduit fitting CCV linkage

Belimo B210+LRB24-SR Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• Mechanical, Pluggable Position Indication
• 1.5 Watt Power Consumption
• 0.4 Watt Rest Power Consumption
• 3 VA Transformer Sizing
• IP54, NEMA 2
