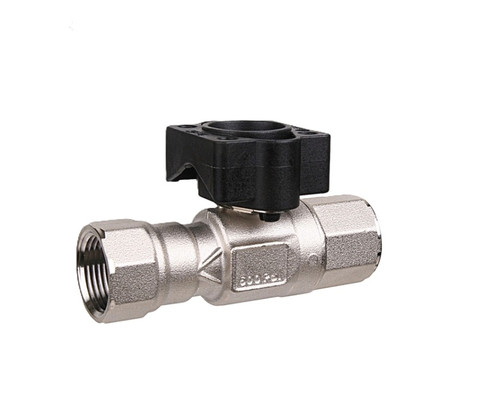

Belimo B220HT731 High Temp 2-Way Ball Valve, 3/4"

Labeled as High Temperature Characterized Control Valve. Used with air handling units and fan coil units for heating or cooling coils.

Belimo B220HT731 Features:

• 7.31 Cv
• 3/4" NPT Valve Size
• NPT Female Ends
• Flow Characteristic: A-Port Equal Percentage
• Used with High Temperature hot water/low pressure steam, up to 60% glycol
• Stainless Ball and Stem
• ETFE Seats
• 600 PSI Body Pressure Rating
