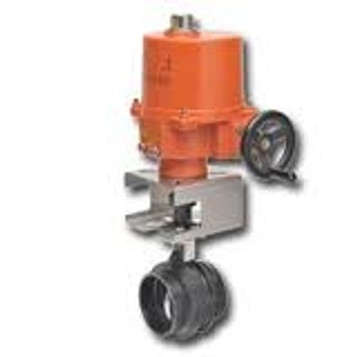

Belimo F6200VIC+SY4-120MFT Butterfly Valve and Actuator, 8"

The F6200VIC Valves are built with a pressure enhanced rubber seat and created for the needs of HVAC and commercial systems requiring bubble tight shut-off for liquids.

Belimo F6200VIC+SY4-120MFT Features:

• 8" Valve Size
• 2-Way Pattern
• 120Vac
• Non Fail-Safe Actuator
• (2) SPDT Auxiliary Switches
• MFT/Programmable Control Type
• 90 Deg Angle of Rotation
• 3400 Cv
• Grooved End Fitting
• Hand Wheel Manual Override
• Chilled or hot water, up to 60% gylcol
• Ductile Cast Iron ASTM A536 Housing
• 416SS Stem Material
• 100:1 Rangeability Sv
• -22 to 250 Deg F Fluid Temp Range
• IP66/67 Protection
