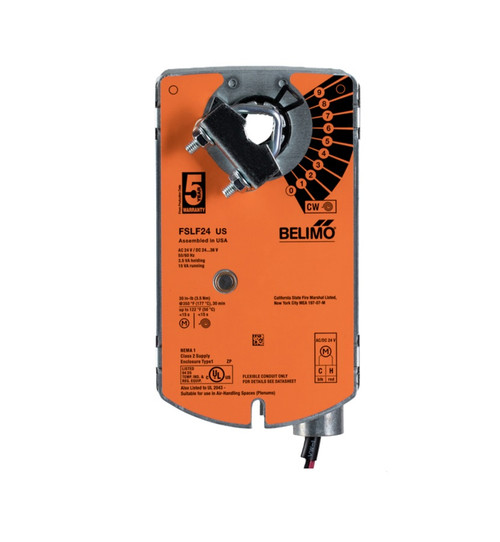

Belimo FSLF24 Fire Smoke Actuator

This type of spring-return actuator is used for smoke and combination fire and smoke dampers in ventilation and air-conditioning applications.

Belimo FSLF24 Features:

• Spring Return
• 24V DC/AC
• On/Off
• 30 in-lb Torque
• <15 s Running Time Fail-Safe
• 120Vac, 50/60Hz
• 15 VA Power Consumption
• 32 to 122 deg F Ambient Temperature
• 24V AC/DC
• 95 Degree of Angle of Rotation
• UL Enclosure Type 1
• IP30, NEMA 1

Technical Literature:

Belimo FSLF24 Data Sheet
