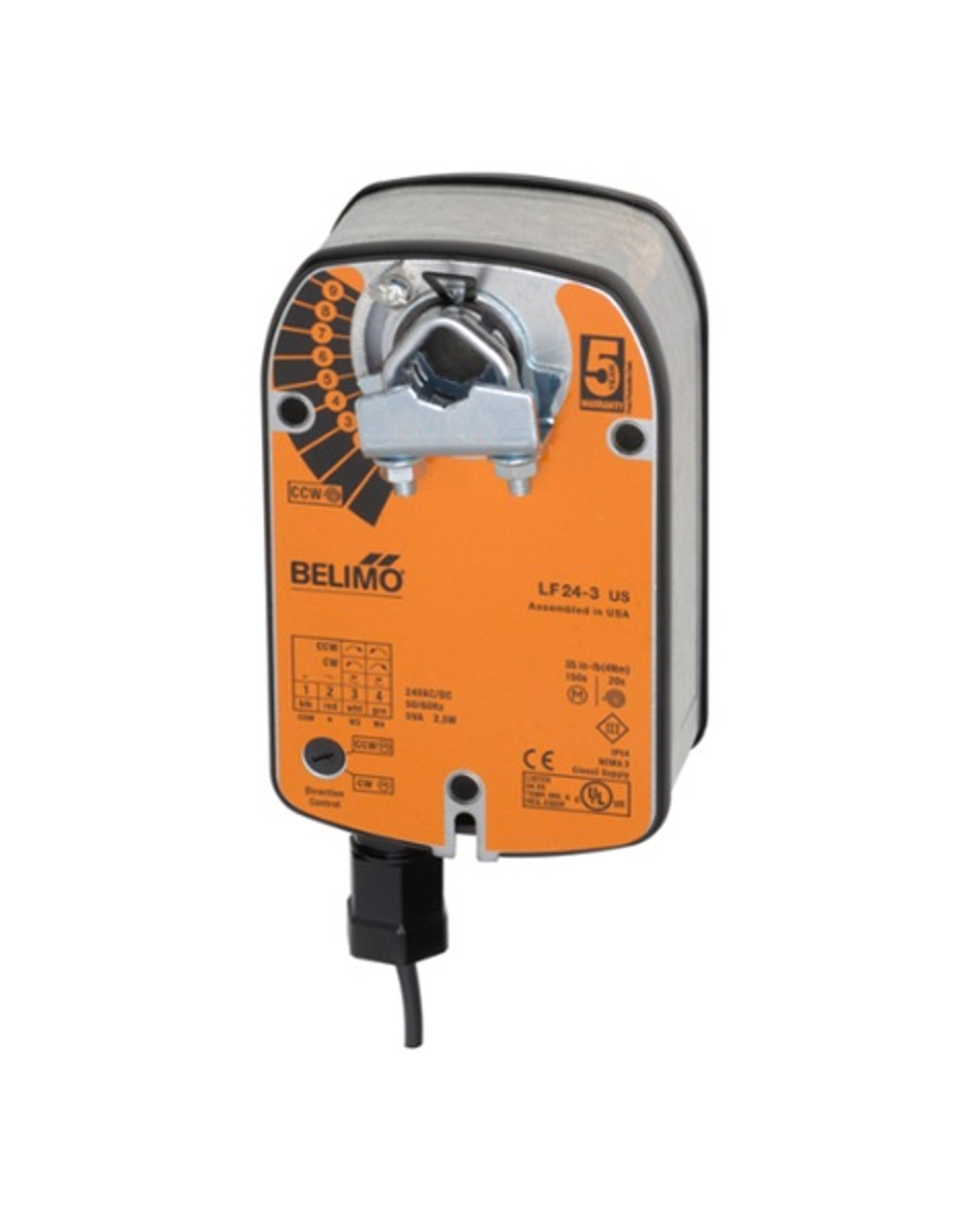

Belimo LF24-3 Damper Actuator, Spring Return

Belimo LF24-3 spring return actuator is used for modulation or on/off, fail-safe control of dampers in HVAC applications.

Belimo LF24-3 Features:

• 24V AC/DC
• 35 in-lb Torque Motor
• Running Time: 150 s constant, independent of load
• Mechanical Position Indication
• -22 to 122 Deg F Ambient Temperature
• 2.5 Watt Power Consumption
• 1 Watt Rest Power Consumption
• 5 VA Transformer Sizing
• Max of 95 Deg Angle of Rotation
• IP54, NEMA 2

Technical Literature:

Belimo LF24-3 Actuator Literature
