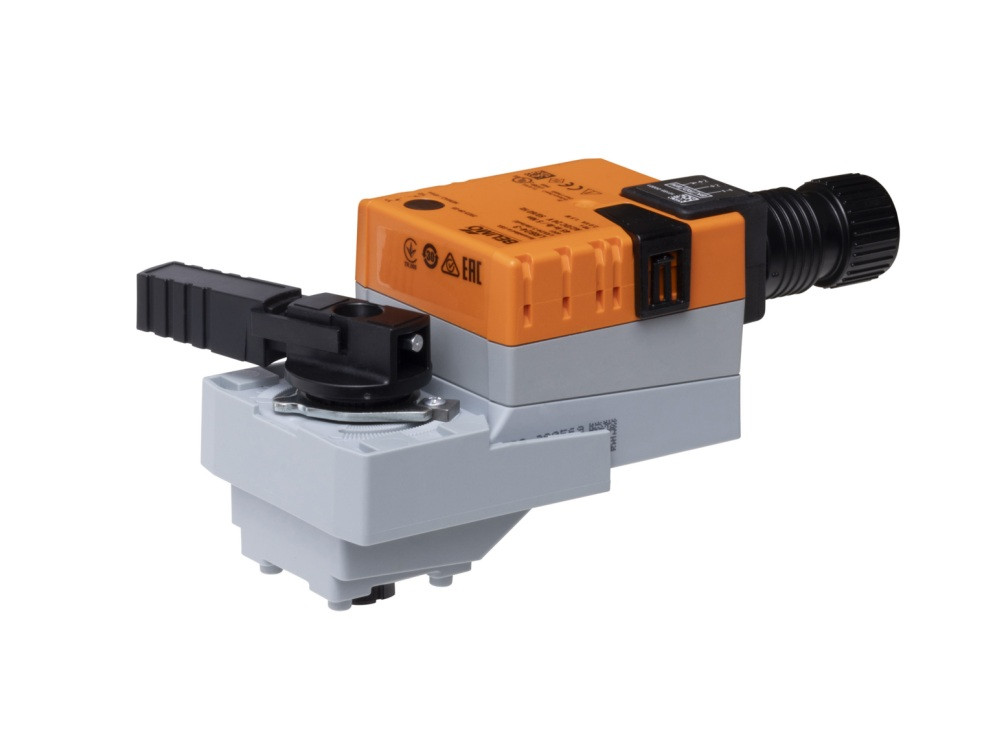

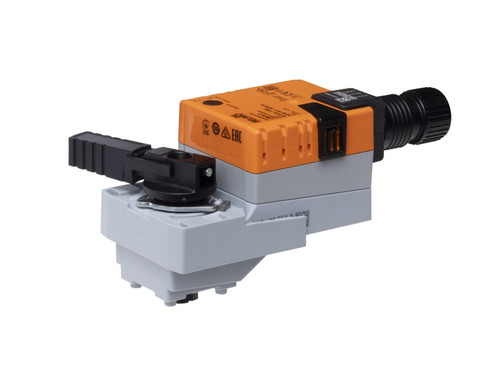

Belimo LRB24-3 Water Valve Actuator, 24V

Used in water applications and is protected by IP54 Category

Belimo LRB24-3 Features:

• Non Fail-Safe Actuator
• Floating, 3-Point Control Type
• 24V AC/DC, 50/60Hz
• 18 GA Plenum Cable, 3ft, with 1/2" Conduit Connector
• Mechanically, Pluggable Position Indication
• External Push Button Manual Override
• 1.5 Watt Power Consumption
• 0.2 Watt Rest Power Consumption
• 2.5 VA Transformer Sizing
• IP54, NEMA 2

Technical Literature:

Belimo LRB24-3 Actuator Literature
