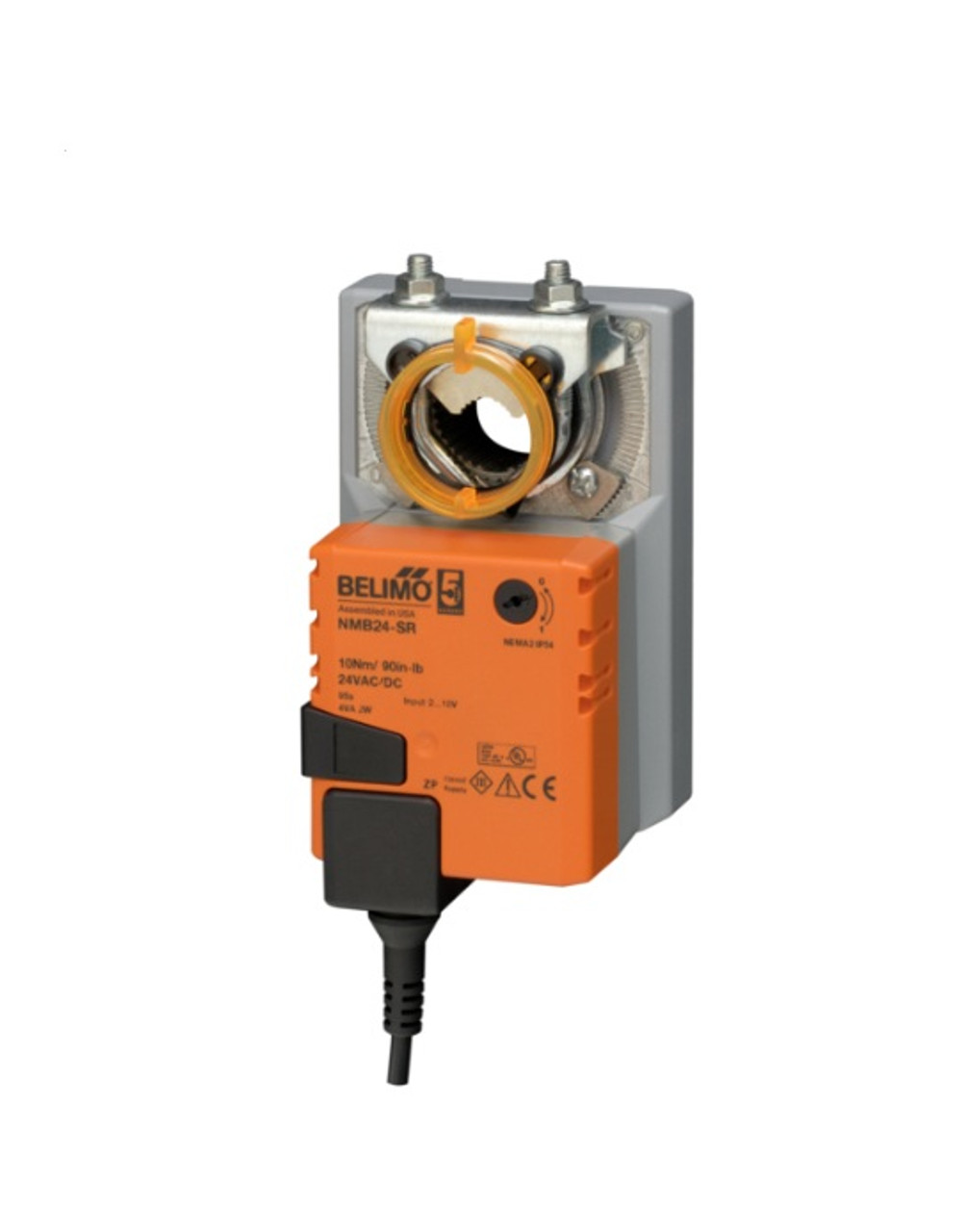

Belimo NMB24-SR Damper Actuator, 24V

This series actuator is used for proportional modulation of dampers in HVAC applications. The actuator is electronically protected against overload and does not require any limit switches.

Belimo NMB24-SR Features:

• 24V AC/DC, 50/60Hz
• Non Fail-Safe Actuator
• Modulating Control Type
• 18 GA Appliance Cable, 3ft, with 1/2" Conduit Connector for Electrical Connection
• 90 in-lb Torque
• Mechanicallu, 30-65mm Stroke Position Indication
• External Push Button Manual Override
• 2.5 Watt Power Consumption
• 0.4 Watt Rest Power Consumption
• 5 VA Transformer Sizing
• IP54, NEMA 2

Technical Literature:

Belimo NMB24-SR Actuator Literature
