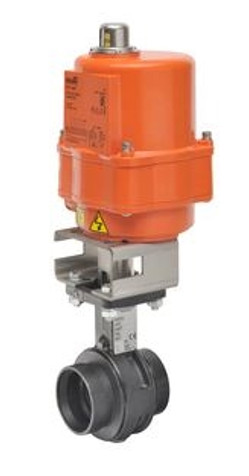

Belimo SY4-24 Valve Actuator, 24V

Belimo SY series actuators are fractional horsepower devices that use full-wave power supplies. Proportional modules can not be connected - Must use a separate, dedicated transformer or power supply to run the SY actuator.

Belimo SY4-24 Features:

• Butterfly Valve Actuator, Non-Fail Safe
• 24V AC/DC, 50/60Hz
• 2x SPDT
• On/Off, Floating Control Type (3 Point)
• Terminal Block Electrical Connection
• 30% Duty Cycle
• 20 Sec Running Time
• Hand Wheel Manual Override
• Max 95% rH, non-condensing Ambient Humidity
• 9.4 Watt Current Consumption
• 226 VA Transformer Sizing
• Die Cast Aluminum Housing Material
• -22 to 150 Deg F Ambient Temperature

Technical Literature:

Belimo SY4-24 Data Sheet
