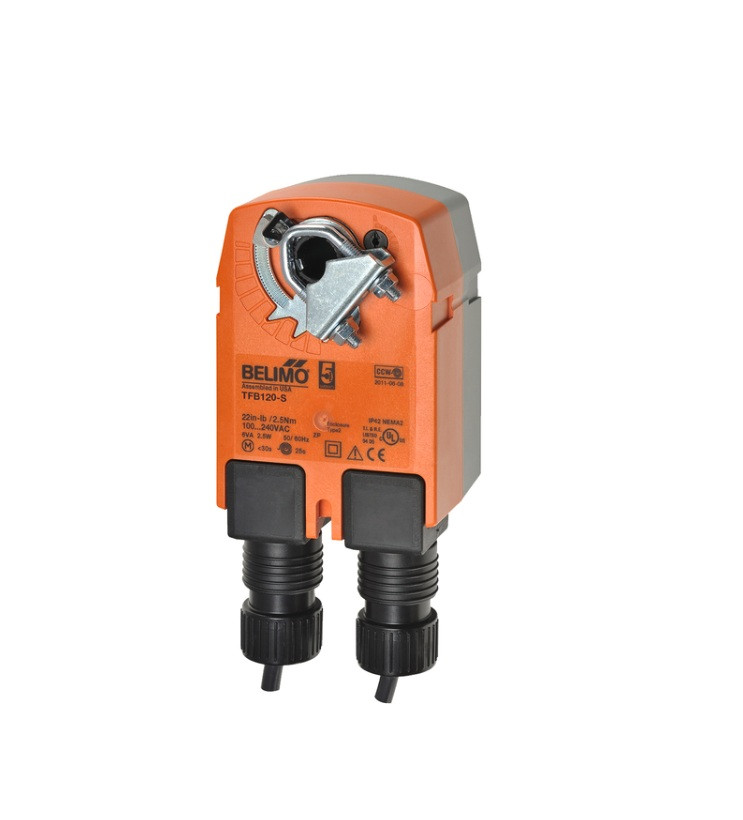

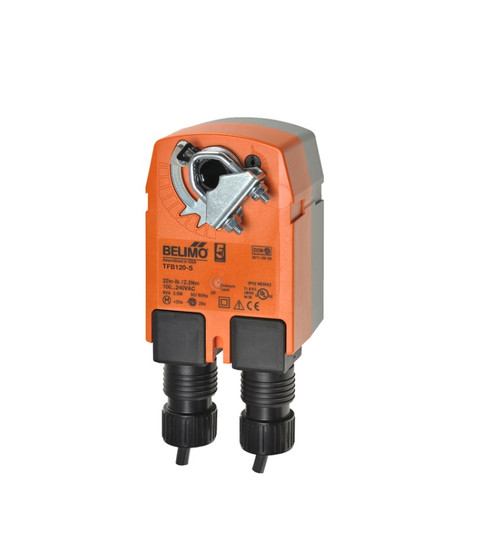

Belimo TFB120-S Damper Actuator, 100-240V

This actuator is used for On/Off, fail-safe control of dampers in HVAC applications. Control is On/Off from an auxiliary contact, or a manual switch.

Belimo TFB120-S Features:

• Built with (1) SPDT Auxiliary Switch
• 100-240Vac, 50/60Hz
• Spring Return Actuator
• On/Off Control Type
• 22 in-lb Torque Motor
• 75 s Running Time
• Mechanical Position Indication
• -22 to 122 Deg F Ambient Temperature
• 2.5 Watt Power Consumption
• 1.3 Watt Rest Power Consumption
• 5 VA Transformer Sizing
• Max of 95 Deg, Adjustable Mechanical Stop Angle of Rotation
• IP42, NEMA 2

Technical Literature:

Belimo TFB120-S Actuator Literature
