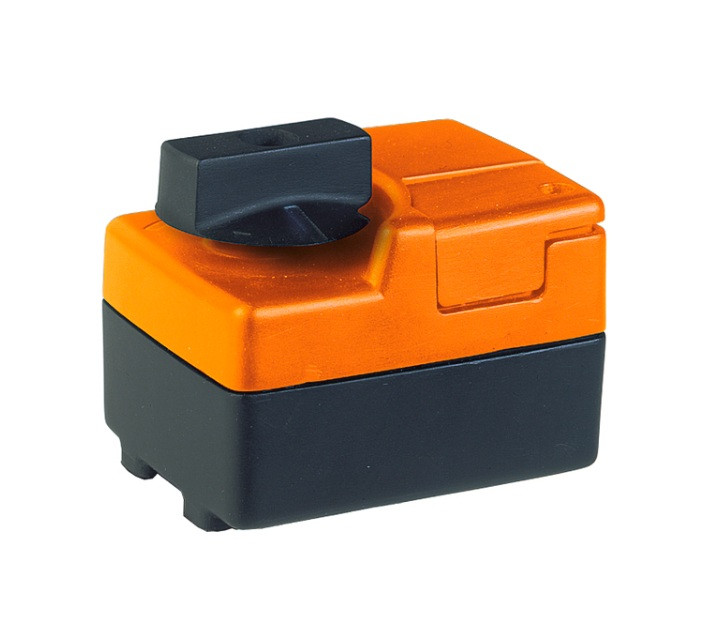

Belimo TR24-SR-T Valve Actuator 24V, Proportional

These Belimo Non-Spring Return Actuators are used for modulating control and run at 2-10VDC for operating range.

Belimo TR24-SR-T Features:

• 24V AC/DC, 50/60Hz
• 2-10Vdc, 4-20 mA Operating Range
• Non Fail-Safe Actuator
• Mechanically, Pluggable Position Indication
• Push Down Handle Manual Override
• 90 Deg Angle of Rotation
• 0.5 Watt Power Consumption
• 1 VA Transformer Sizing
• Screw Terminal Electrical Connection (for 26 to 14 GA wire)
• -22 to 122 Deg F Ambient Temperature
• IP40, NEMA 1

Technical Literature:

Belimo TR24-SR-T Actuator Literature
