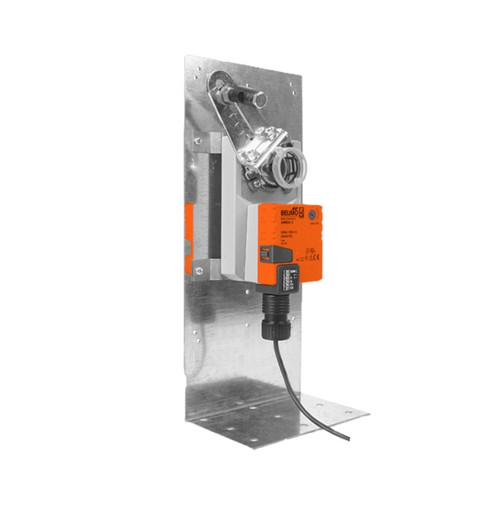

Belimo ZG-104 Right Angle Mounting Bracket

Belimo ZG-104 Right Angle Mounting Bracket is designed for applications where the actuator cannot be mounted directly to the shaft, and no proper mounting surface is available. It may be used directly to the damper assembly, fastened to the ductwork, or for outside or inside the duct mounting. With the ZG-104 it allows these actuators to be mounted in two different ways, because of the hole pattern layouts.

Belimo ZG-104 Features:

• 13-5/8" High x 7-1/2" Wide x 4" Base
• 12 GA. Galvanized
• Used with GM, AM, and NM Actuators

Technical Literature:

Belimo Mechanical Accessory Literature
