In today’s competitive manufacturing landscape, performance and efficiency aren’t just desirable—they’re essential. For oven manufacturers, the challenge has always been to deliver consistent heat while minimizing energy consumption and maintenance costs. Industrial oven designs have matured over the past 30 years and are based on the standardization of their sub-components and their design and function. Innovative improvements become a rare occurrence. When they are discovered, industries quickly take notice and soon after the bar raises to the next level of standardization.
At Horizon Performance Technologies, we’ve taken that challenge head-on, having introduced a new generation of ovens that combine cutting-edge design with real-world savings. Our Cyclone Technology™ has answered the task and is taking performance and energy efficiency to the next benchmark in thermal processing.
The Challenge: Traditional Oven Limitations
Legacy oven systems often struggle with uneven heat distribution, excessive energy use, and frequent maintenance needs. These issues not only impact product quality but also drive up operating costs and reduce overall productivity. As industries never ending demands for more sustainable and cost-effective solutions, the need for smarter oven technology has never been greater.
Design Innovations That Make a Difference
Horizon’s Cyclone Fan Design – The turbine-type fan moves away from standard type plug fans providing several benefits:
- Typically moves twice as much CFM
- Requires approximately 1/3 of the motor horsepower to drive the fan
- Fan rpm is approximately half of a standard fan. Resulting in less bearing wear and longer life.
Cyclone Oven Designs Key Points of Difference
- In a common 500 F degree oven, Horizon ovens offer temperature uniformity of +/- 3 °F , and in many cases have shown +/- 2°F. versus the industry standard of +/- 10°F.
- Faster heat-up times – With nearly double the air flow and the consistency of heat transfer, process times see significant reduction.
- Heat source and control is located at floor level for ease of maintenance as opposed to roof mounted.
Performance Gains You Can Measure
2025 Project Evaluation – Case study
Horizon completed a typical truck-in composite curing oven system utilizing our patented technology.
General oven design specifications :
- I.D. 8’-6” W x 8’-10” H x 26’-0” L
- Max./Operating Temperatures - 500°F/350°F
- Maximum Charge Wt. – 2,500 lbs

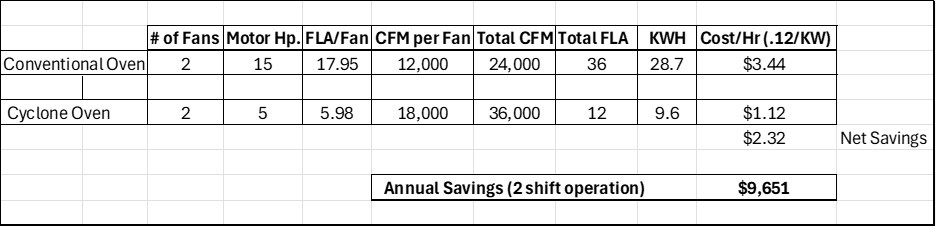

Operational analysis – Annual operating cost comparison
Comparison is based on previous designs and engineering using conventional oven technologies. Data will always vary slightly between manufacturers.
Cost Savings and Performance Gains Over Time
Lower energy bills and reduced maintenance translate into significant long-term savings. Our customer’s own testing and evaluation resulted in a documented temperature uniformity of +/- 2.5°F . Within four weeks of this testing our customer was so impressed with the test results they relayed their experience and results to their corporate engineering resulting in a 5 oven order for a sister location!
Sustainability Impact
Beyond cost savings, our ovens contribute to a greener future. By reducing energy consumption and emissions, they help companies meet environmental regulations and support broader ESG goals.
What’s Next: Future Innovations
We’re continuing to push boundaries with AI-driven heat optimization, IoT integration, and even more sustainable materials. Our R&D team is always exploring new ways to make ovens smarter, faster, and cleaner.
Conclusion
At Horizon, we believe that great design drives great performance. Our latest oven models prove that efficiency and quality can go hand-in-hand. Ready to upgrade your thermal processing game? Contact us today for a demo or download our product brochure to learn more.
