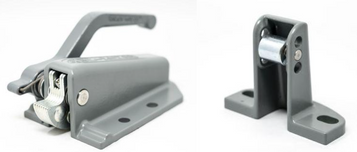

Brixon 84HCS #84 Latch Body, Handle & Strike, Cast Steel

The Brixon 84HCS #84 Latch Body, Handle & Strike is available with high quality, handsomely restyled, stainless steel housings and handles. Stainless steel internal parts are standard. The Model 84 and 94 provides the same pressure release range as the original iron latch Model 4.

Offering the widest pressure release range of any Factory Mutual (FM) approved explosion venting latch manufacturer, from as low as .01 PSI to pressure in excess of 3,000 pounds per door (using multiple latches). In addition to reliability and convenience, Brixon latches are designed to allow for installation from flush to well over 1 " offsets.

Casting Finish: Standard Investment Cast Finish

Release Force Range: Adjustable: 58-285 lbs. (26.3-129.3 kg)

Handle Options: Available for right-hand or left-hand side of body.

Housing Materials: Body, Strike, Handle & Shim Castings: CF-8M (316) Stainless Steel.

Internal Parts: Coil Spring: PH 17-7 Chromium-Nickel Stainless Steel. Ball Pin: 416 Stainless Steel (Hardened and Passivated). Cam, Nut, Rivets & Washers: 304 Stainless Steel. Roller, Strike Pin, Set Screw, Cross-Pin & Body Pin: 303 Stainless Steel. E-Clips: PH 15-7 Mo Stainless Steel. Handle Torsion Spring: 302 Stainless Steel Spring Wire.

Mounting: Use 3/8 (Grade 8) or 10mm (Grade 8.8) bolts for mounting. 2 bolts required for strikes & shims, and 4 bolts for the latch body. Flat washers & lock washers are recommended.

Door-Doorjamb Offset: No shim required 0.000 - 0.197 in (0 - 5mm)
