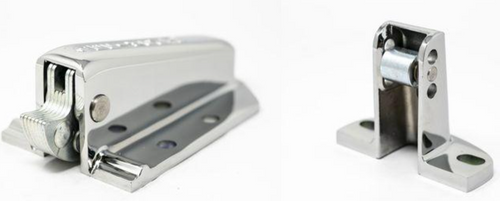

Brixon 84PCS-C #84 Latch Body and Strike, Cast Steel, Chrome Plated

The Brixon 84PCS-C #84 Latch Body and Strike are available with high quality, restyled, stainless steel housings and handles. Stainless steel internal parts are standard.

This industrial oven door latch is often used as a explosion relief latch or as a spring relief latch on industrial oven doors. Brixon latches are designed to allow for installation from flush to well over 1 " offsets.

Casting Finish Options: Standard Investment Cast Finish, Electropolished, Polished/Buffed/Passivated.

Release Force Range: Adjustable: 58-285 lbs. (26.3-129.3 kg)

Handle Options: Available for right-hand or left-hand side of body. Please specify #94-RH or #94-LH

Weight:

• #84 & #94P Body only 3.73 lb. (1.69 kg).
• #84 & #94H Body and handle only 4.86 lb. (2.21 kg)

Dimensions:

• #84 & #94P Body & Strike Length: 8.39 in. (213 mm) Height: 2.50 in (63.5 mm)
• #84 & #94H Body, Handle & Strike Length: 9.53 in. (242 mm) Height: 3.50 in (89.0 mm)
• #84 & #94P Body only Length: 7.36 in. (187 mm) Height: 2.50 in (63.5 mm)
• #84 & #94H Body & Handle only Length: 8.50 in. (216 mm) Height: 3.50 in (89.0 mm)

Housing Materials: Body, Strike, Handle & Shim Castings: CF-8M (316) Stainless Steel.

Internal Parts: Coil Spring: PH 17-7 Chromium-Nickel Stainless Steel. Ball Pin: 416 Stainless Steel (Hardened and Passivated). Cam, Nut, Rivets & Washers: 304 Stainless Steel. Roller, Strike Pin, Set Screw, Cross-Pin & Body Pin: 303 Stainless Steel. E-Clips: PH 15-7 Mo Stainless Steel. Handle Torsion Spring: 302 Stainless Steel Spring Wire.

Mounting: Use 3/8" (Grade 8) or 10mm (Grade 8.8) bolts for mounting. 2 bolts required for strikes & shims, and 4 bolts for the latch body. Flat washers & lock washers are recommended.

Door-Doorjamb Offset: No shim required 0.000 - 0.197 in (0 - 5mm)
