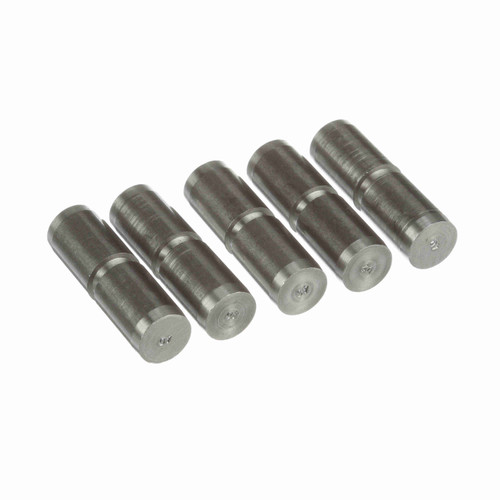

Browning 4Q Shear Pin, 16060 in-lbs

Browning 4Q Shear Pin. Rated at 16060 IN-LBS with the SHQ1 shear pin hub. Rated at 20,950 IN-LBS with the SHR1 shear pin hub. The necked down pin provides proper torque limitation ratings typical on industrial oven & washer conveyor systems.

Browning 4Q Features:

• SHQ1: 1.875" Minimum Shaft Diameter
• SHR1: 2.0625" Minimum Shaft Diameter
• 25.4 Hp @ 100 RPM for SHQ1
• 33.2 Hp @ 100 RPM for SHR1
• Pin OD = 1/2"
• Pin neck = 9/32"
• Pin length = 1-5/8"
