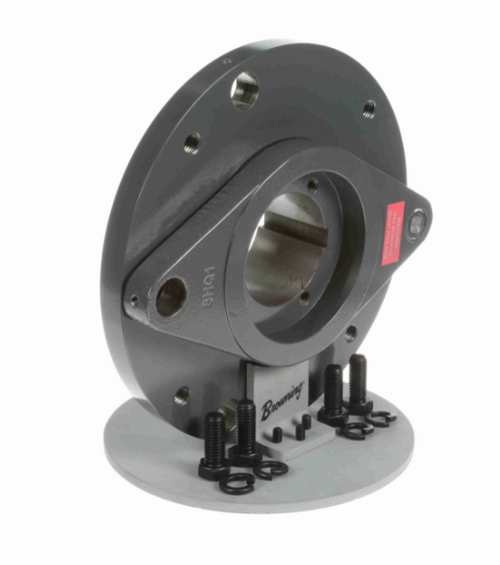

Browning SHQ1 Shear Hub, 7140 to 38,890 in-lbs

Browning SHQ1 shear hub. Rated at 7140-38890 IN-LBS, 3/4" to 2-11/16" bore. Use as a mechanical over-torque limit device thru the use of a shear pin. Use with Q1 bushing.

Type 2 hubs are provided with a grease fitting for re-lubrication.

Browning SHQ1 Features:

• 3/4 to 2-11/16" Bore Range
• Manual Reset
• 8.625 Mounting Bolt Circle Diameter
• 6 Sprocket Pilot Diameter
• Q1 Bore Bushing
• 10" Flange Diameter
• 0.5 Capscrew Size
• No Sensor Plate
