Cabinet Washers
A cabinet washer, also commonly referred to as a batch washer, industrial parts washer cabinet, or industrial cabinet washer, is used to wash or pretreat metal parts prior to powder or liquid coating. Instead of moving parts through on a continuous conveyor, cabinet washers process parts in batches. Parts are typically loaded on carts or hung on a manual or indexing conveyor.
Custom Engineered Solutions for Diverse Industries
Horizon Performance Technologies has designed and built a wide range of custom industrial washer systems to solve unique cleaning, pretreatment, and finishing challenges across modern manufacturing. Past projects have included cabinet and batch washers, conveyor belt washers, dip tanks, drum washers, monorail washers, and fully integrated finishing systems. These systems are engineered to remove oils, grease, coolants, metal fines, dirt, and other contaminants while preparing parts for powder coating, liquid paint, assembly, heat processing, or final packaging. Every washer is built around the customer’s specific part geometry, throughput goals, cleanliness standards, chemistry requirements, and available floor space.
Horizon equipment is used across a broad range of industries including automotive, aerospace, appliance manufacturing, fabricated metals, electronics, medical components, energy, solar, military, and general industrial production. Common applications include pretreatment before coating, corrosion protection to parts after machining, removal of heavy soils, multi-stage rinsing, and surface preparation for critical downstream processes. Whether the need is a batch washer for high-mix production or a continuous washer for demanding throughput, Horizon builds systems equipped with our patented Torrent Technology™ that produce repeatable results, lower operating costs, and long-term reliability.
Advantages of Horizon Cabinet Washers
Horizon Performance Technologies LLC (Horizon) utilizes Torrent Technology™ in its cabinet pretreatment washers, delivering multiple advantages over conventional washer designs.
-
Footprint Efficiency & Cost Benefits
A cabinet washer can have one product door for parts to enter and exit, or entry and exit doors on opposite sides. Because parts are cleaned in place, a cabinet or batch washer requires a smaller footprint and lower equipment cost than a comparable continuous conveyor washer.
-
Safety and Personnel Exposure Reduction
Compared to manual cleaning in a wash booth, a cabinet washer reduces personnel exposure to chemicals and is less labor intensive due to its enclosed design and smaller footprint.
-
Benefits for Coating Adhesion and Longevity
Pretreatment washers clean and prepare metal parts prior to coating. This multi-stage process improves adhesion and significantly increases the longevity and performance of powder or liquid coatings.
-
Multi-Stage Processing in a Single Compact Unit
Rotating nozzle bars enable a complete multi-stage pretreatment process within a single cabinet. The swirling spray pattern ensures thorough and consistent coverage, even with stationary parts.
-
Dramatically Improved Cleaning Performance
Increased spray velocity from rotating risers enhances chemical application and improves cleaning of complex part geometries. Typical sweep velocities reach approximately 70 ft./min., significantly improving effectiveness.
-
Reduced Water Flow & Operating Costs
Torrent washers use significantly fewer nozzles—often about one-fifth as many as conventional systems—resulting in lower water usage, reduced energy consumption, and lower overall operating costs.
- Reduced evaporation lowers heating energy requirements and decreases water and chemical consumption.
- Lower exhaust requirements reduce facility make-up air demand; many systems require no exhaust.
- Smaller pumps reduce overall energy usage.
- Lower solution volume reduces tank size and disposal costs.
- Fewer nozzles result in reduced maintenance requirements.
How Cabinet Washers Work: Rotating Risers for Superior Cleaning
Cabinet, or batch, pretreatment washers clean and prepare parts while the load remains stationary inside an enclosed washer canopy. These systems are built around multiple solution or rinse tanks, each dedicated to a specific stage of the process. During operation, liquid from each tank is pumped through spray nozzles and applied sequentially—such as cleaning, rinsing, or pretreatment—to deliver controlled, repeatable results throughout the cycle.
Why Pretreatment Matters
Pretreatment washing is a critical step for manufacturers producing painted, coated, or finished metal parts. Proper cleaning and surface preparation help improve coating adhesion, corrosion resistance, and overall product quality. Cabinet washers are ideal for batch processing, large components, mixed part loads, and applications that require flexibility from one run to the next.
Horizon cabinet washers equipped with Torrent Technology™ are used in traditional multi-stage pretreatment systems as well as single-stage pretreatment and coating processes. This includes organic phosphating applications, such as plaforization, where consistent coverage and controlled chemistry are essential.
How Torrent Technology™ Improves Cleaning
Horizon’s patented Torrent Technology™ represents a major advancement in cabinet washer design. Instead of relying on multiple stationary riser columns filled with nozzles, Torrent Washers™ use rotating riser bars with attached spray nozzles that move in a circular pattern during operation.
This dynamic spray motion creates more points of impingement, improves part coverage, and cleans recessed or difficult areas more effectively—all while using fewer nozzles and lower overall water flow. Reduced flow lowers pump horsepower requirements, decreases electrical energy consumption, reduces chemical usage, and helps lower treatment and disposal costs.
Process Control and Efficiency Benefits
Additional performance gains come from precise process control. Between stages, common piping can be blown out with compressed air to reduce chemical carryover and help maintain bath integrity. Variable frequency drives (VFDs) on pumps and rotating risers allow operators to fine-tune flow rate, pressure, and rotational speed to match specific part geometries, soil levels, and process requirements.
The result is a smarter, more efficient cabinet washer system that delivers superior cleaning performance, lower operating costs, and more consistent finishing results.
Batch & Cabinet Washer Construction
Horizon cabinet washers are engineered for long-term durability, process reliability, and ease of maintenance. Heavy-duty construction materials, precision components, and operator-friendly controls are combined to support demanding industrial cleaning and pretreatment applications.
- Stainless steel construction for roof, walls, drain boards, and production doors.
- Stainless steel wetted pumps.
- Stainless steel process piping.
- Stainless steel nozzles.
- Stainless steel plank grating for internal walkways.
- Stainless steel welded, leak-tested tanks with bottoms pitched to drain connections.
- Stainless steel tank covers with handles and latches.
- Vertical pumps with seal-less design and VFD control.
- Rotating risers with adjustable speed drive mechanisms independent of water pressure.
- Ceramic-coated stainless steel rotating unions and oversized gearboxes for long service life.
- Continuous header pressure monitoring.
- Maintenance access doors.
- Screens in each tank located in the charge box areas prior to the pumps.
- Optional electronic liquid level sensing and control.
- Optional internal lighting.
- PLC with PanelView HMI for adjustment of nozzle arm speed, nozzle flow, and cycle times.
- Maxon, Eclipse, or Midco natural gas or propane-fired burners.
- Incoloy-sheathed electric immersion heaters with flanged connections for easier maintenance.
- Compressed air tank to blow out common process piping between stages, reducing carryover.
Batch & Cabinet Washer Accessories
Horizon offers a range of optional accessories to help cabinet washers meet specific cleaning, process control, and water quality requirements. These accessories can improve washer performance, reduce maintenance, and support more consistent results across demanding applications.

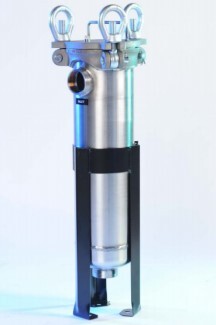

Filtering
Stainless steel bag filter housings equipped with isolation valves help maintain process cleanliness and improve system reliability. Optional pressure monitoring provides feedback on filter condition and can alert operators when maintenance is required or shut down the system if performance falls out of specification.
Magnetic Filter
A magnetic separator with drain board removes magnetic fines from the process water. Return water passes across the magnetic filter where fines are collected, and the unit can be removed for easier cleaning and disposal.
Internal LED Lighting
LED lights mounted externally to the chamber over a tempered glass window improve visibility inside the washer. Operators can turn the lighting on and off through the operator interface terminal.
Oil Coalescer
Located next to the washer, the oil coalescer operates in a side-stream configuration, drawing a water-oil mixture from the surface with a floating head and diaphragm pump. Separated oil is routed to a disposal container while usable fluid is returned to the washer.

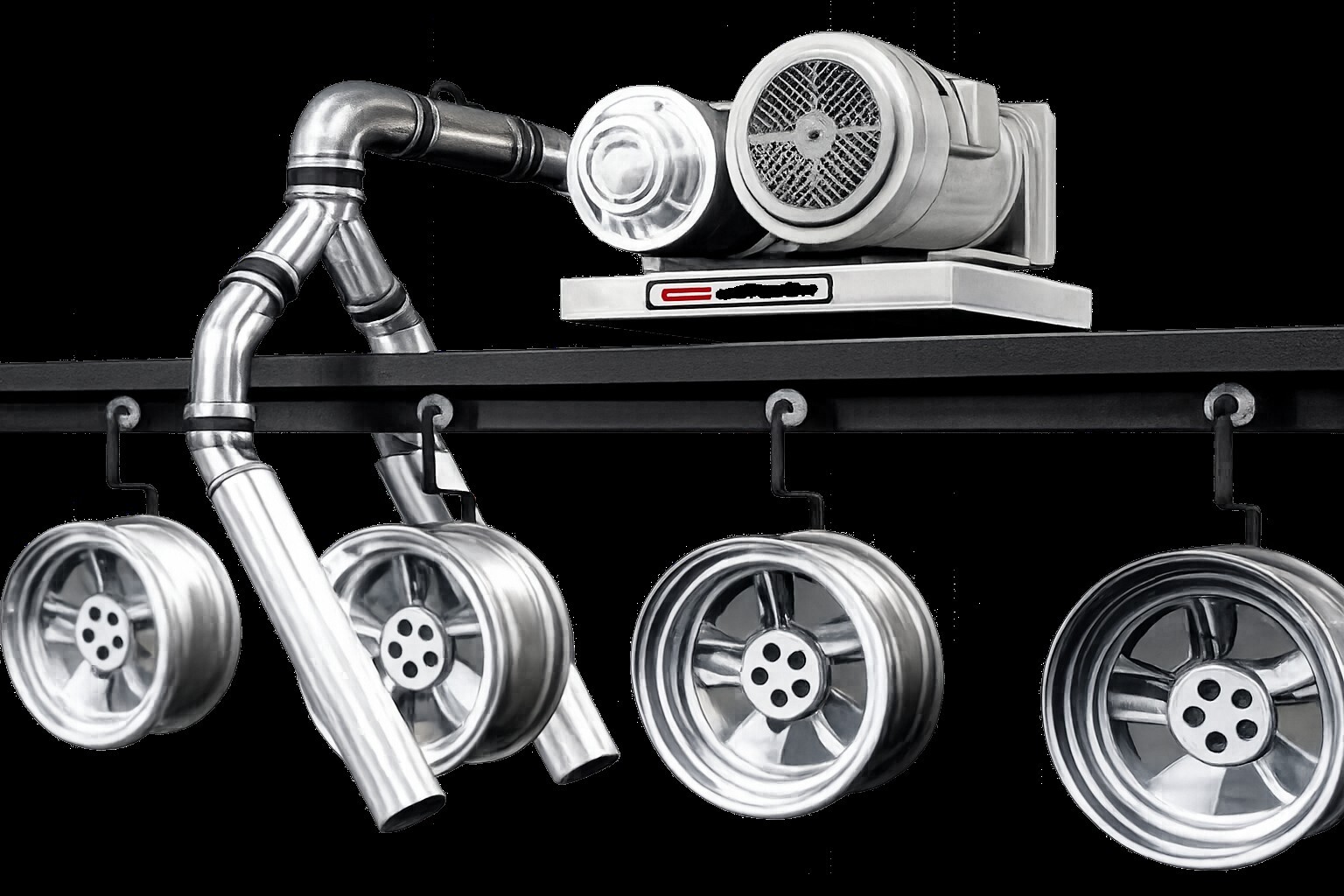

Blow-Off System
A high-efficiency blower uses air knives or air cannons to remove excess moisture from products as they exit the washer. Adjustable air knives or cannons can be positioned to target areas where water tends to collect.

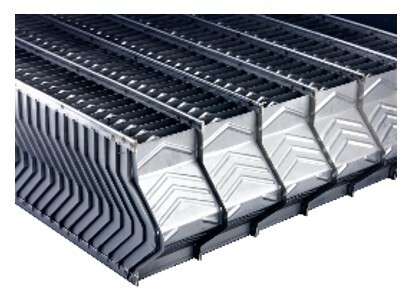

Mist Eliminator
The mist eliminator captures and drains aerosolized coating liquid that would otherwise be carried out through the exhaust. It is ideal for coating processes such as organic phosphating or Plaforization where liquid recovery is economically beneficial.

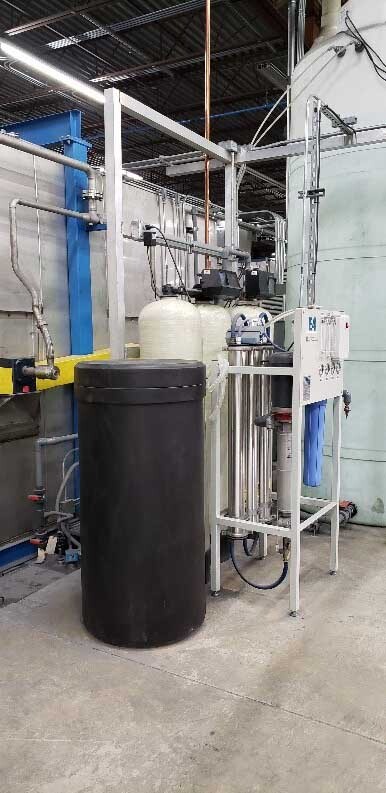

Water Treatment System
Complete water treatment systems are available to improve incoming water quality and support consistent process performance. Options may include:
- Carbon filter systems for chlorine removal.
- Duplex water softeners for mineral hardness removal.
- Reverse osmosis systems reducing dissolved solids by 97–98%.
- Transfer pumps for circulation and pressure control.
- RO storage tanks with recirculation systems.
- Conductivity monitoring.
- UV sanitation for bacteria control.
Frequently Asked Questions
What is an industrial cabinet or batch washer and how does it work?
Answer: An industrial cabinet or batch washer is a contained cleaning system where the parts being serviced remain in a stationary position while cleaning stages are performed sequentially. Parts are loaded into the cabinet and water or chemical solutions are sprayed under controlled pressure and temperature.
Horizon batch washers can execute many stages within the same cabinet. Wash, rinse, seal, dry, or coating can all be performed in one place without a need to move the parts. Because the parts do not move, this type of washer is ideal for:
- Lower to medium production volumes
- High cleanliness requirements
- Mixed part sizes and geometries
How do you reduce chemical and water consumption in batch washers?
Answer: System design—not merely operating practice—is the best solution to reducing the consumption and waste of water, chemicals, and energy. Horizon Washers with patented technology utilize fewer nozzles to perform a more comprehensive clean. This design advantage necessitates less water, fewer pumps, reduced energy usage, and subsequently less waste.
What determines cleaning performance in a cabinet washer?
Answer: Cleaning performance is contingent on several factors. Some outcomes are a direct result of the washer design; others are a byproduct of chemistry or the process itself.
- Mechanical energy — spray pressure, nozzle design, and coverage. Torrent’s rotating arms are unmatched in this category.
- Chemistry — detergent type, concentration, and compatibility. Work with a trusted supplier.
- Temperature — solution temperature and heat retention. Optimize your process and rely on your PLC.
- Time — dwell time for each stage. Ensure dwell time for each stage is sufficient for maximum process results.
- Spray pattern consistency — uniform spray impingement is required, not just higher spray pressure. Learn more about Torrent Technology and how it outperforms others in spray impingement.
- Filtration effectiveness — screens, strainers, bag filters, magnetic filtration, oil skimmers and more must be optimized for your process. Horizon can build your washer to maximize filtration efficiency.
What industries use cabinet washers?
Answer: Any industry where oils, coolants, soils, or coatings are applied to metal. This includes but is not limited to:
- Automotive
- Aerospace
- Appliance manufacturing
- Medical components
- Fabricated metal
- Powder coating and paint pretreatment
Which is better, batch washer or conveyor washer?
Answer: Neither is “better.” They both address different production needs.
Cabinet or batch washers are better for:
- Lower volumes
- High mix
- Variable part sizes
- Tight cleanliness or coating specifications
Continuous or belt washers are best for:
- High volumes
- Inline processing with ovens and coaters
- Uniform part sizes
Ready to Optimize Your Manufacturing Process?
At Horizon, we’re not just building industrial batch washers—we’re creating engineered cleaning solutions that move your business forward in a cost-saving, efficient, and reliable way. Contact us today to discuss your application and discover how a custom Horizon batch and cabinet washer with Torrent Technology™ can improve your manufacturing process.
