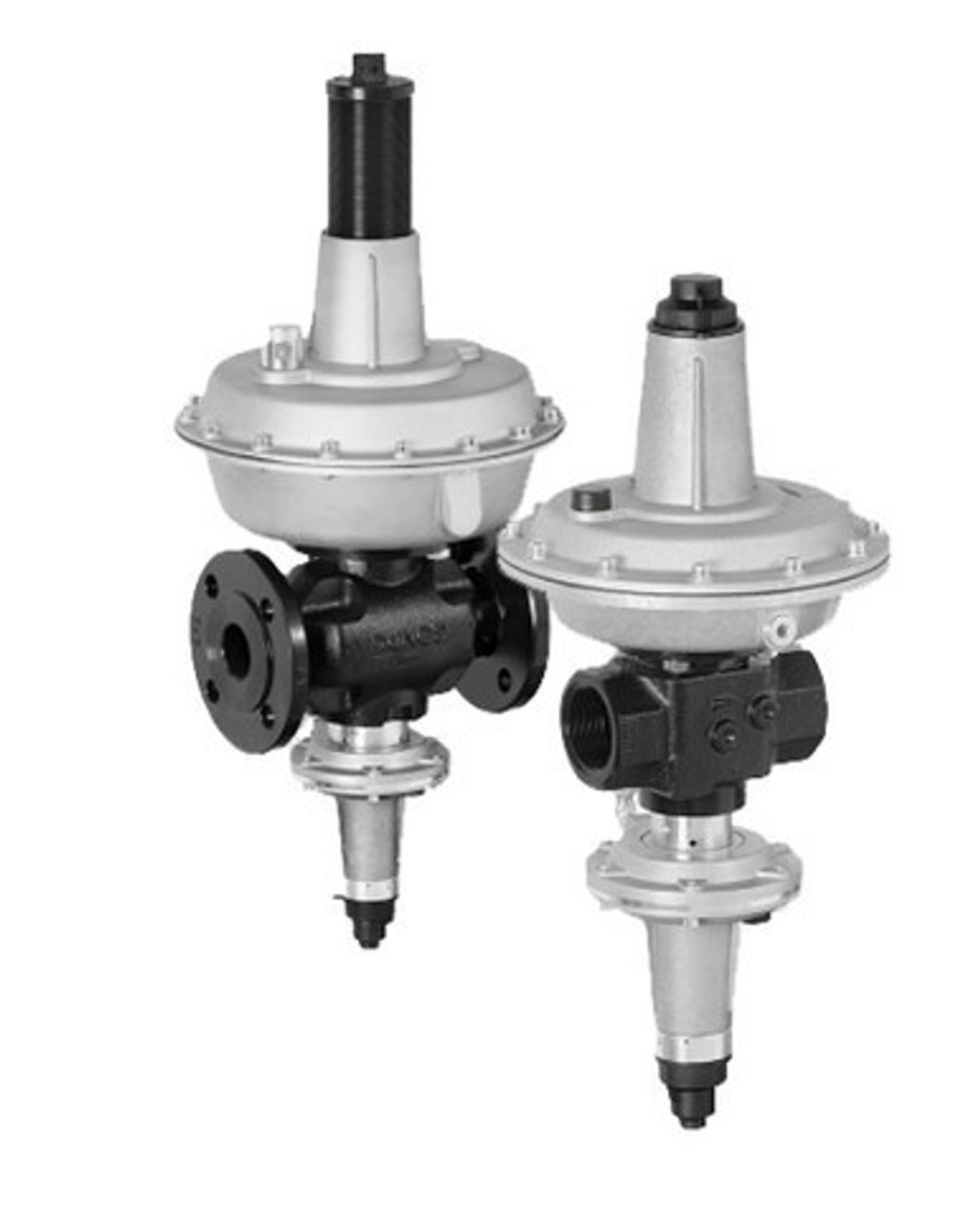

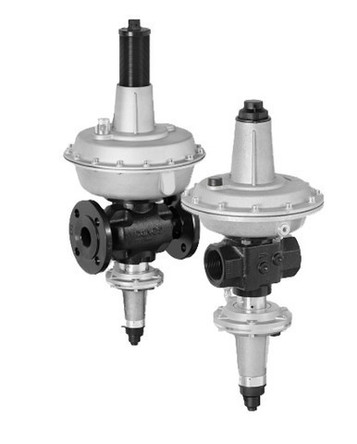

Dungs 280227 Med Pressure Regulator FRM-NOC 10010 UHD/SAV/NPT

The Medium Pressure Controller FRM-NOC/SAV is a direct acting pressure regulator without
inlet pressure compensation that has adjustable setpoint spring and optional modular safety
shutoff valve (SAV).

• Input pressures up to 10 bar (4000" WC) (1,000 kPa) (145 Psig)
• Rapid response to changes in flows
• 4-to-6 different seat diameters available for each size
• Regulating cup without inlet pressure balancing
• Internal sensing (Optional: external sensing)
• Easy maintenance
• Flange connection ANSI 150Lbs 1", 1.5", 2" or PN25 - DN25, DN40, DN50
• AC 10 Accuracy class, SG20 Accuracy for Slam Shut

For systems that require rapid response to changes in flows (industrial gas burners and gas
burning appliances), the FRM-NOC is suitable for gases of gas families 1,2,3 and other
neutral gaseous media including hydrogen blends up to 20% H2.

Dungs 280227 Features:

• 1" Ultra High Outlet Pressure Regulator with Safety Shut off Valve
• Outlet Pressure Range:  14.5 - 58 Psig

Technical Literature:

Dungs Medium Pressure Regulator FRM-NOC
