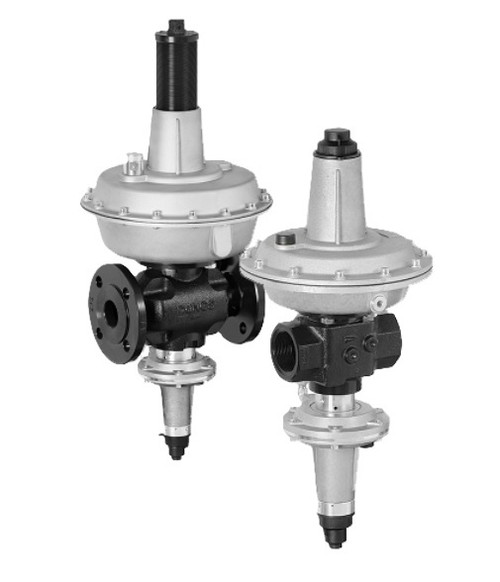

Dungs 280236 Medium Pressure Regulator FRM-NOC 10010 ND NPT

The Medium Pressure Controller FRM-NOC is a direct acting pressure regulator without inlet pressure compensation that has adjustable setpoint spring and optional modular safety shutoff valve (SAV).

• Input pressures up to 10 bar (1,000 kPa) (145 Psig)
• Rapid response to changes in flows
• 4-to-6 different seat diameters available for each size
• Regulating cup without inlet pressure balancing
• Internal sensing (Optional: external sensing)
• Flange connection ANSI 150Lbs 1", 1.5", 2" or DN25, DN40, DN50

For systems that require rapid response to changes in flows (industrial gas burners and gas burning appliances), the FRM-NOC is suitable for gases of gas families 1,2,3 and other neutral gaseous media.

Dungs 280236 Features:

• 8" to 40" W.C. outlet pressure range
• 1" NPT

Technical Literature:

Dungs Medium Pressure Regulator FRM-NOC
