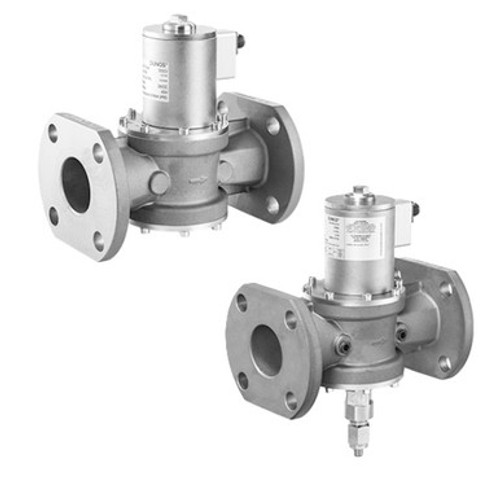

Dungs 295852 High Pressure Valves-HPSV 10020/614

The HPSV high pressure safety shutoff valve is a single-stage automatic shut-off valve for gas
engines or other high pressure applications using 24 VDC. It is a double-seated valve with
max operating pressure of up to 100 PSI (7 bar).

With a fast-open/fast-close valve, the HPSV is suitable for industrial and commercial applications using spark ignited gas engines for standby and prime power generation. POC and Visual indication options are available. The
HPSV is suitable for dry natural gas, propane, butane, hydrogen, air and inert gases for pressures up to 100 psig and H2S up to 0.1% by volume, dry. There are four 1/4" NPT pressure ports, two on each side. Some versions of the HPSV can be direct engine mounted. It has been tested and designed for installation with high levels of vibration.

Dungs 270890 Features:

• PI 24 VDC W/POC
• 2" ANSI flanged, Proof of Closure with LED Visual Indication (VI)
• Replacement Coil:  #295850
• Connector #271568 is required for valve operation on all models
• Seal #268153 is recommended

Technical Literature:

Dungs High Pressure Valves Safety Shutoff Valves-HPSV
