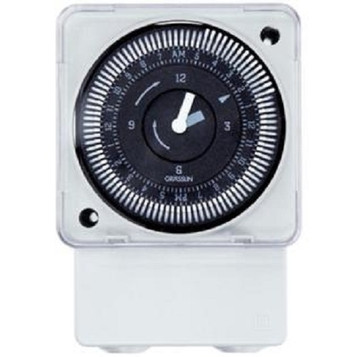

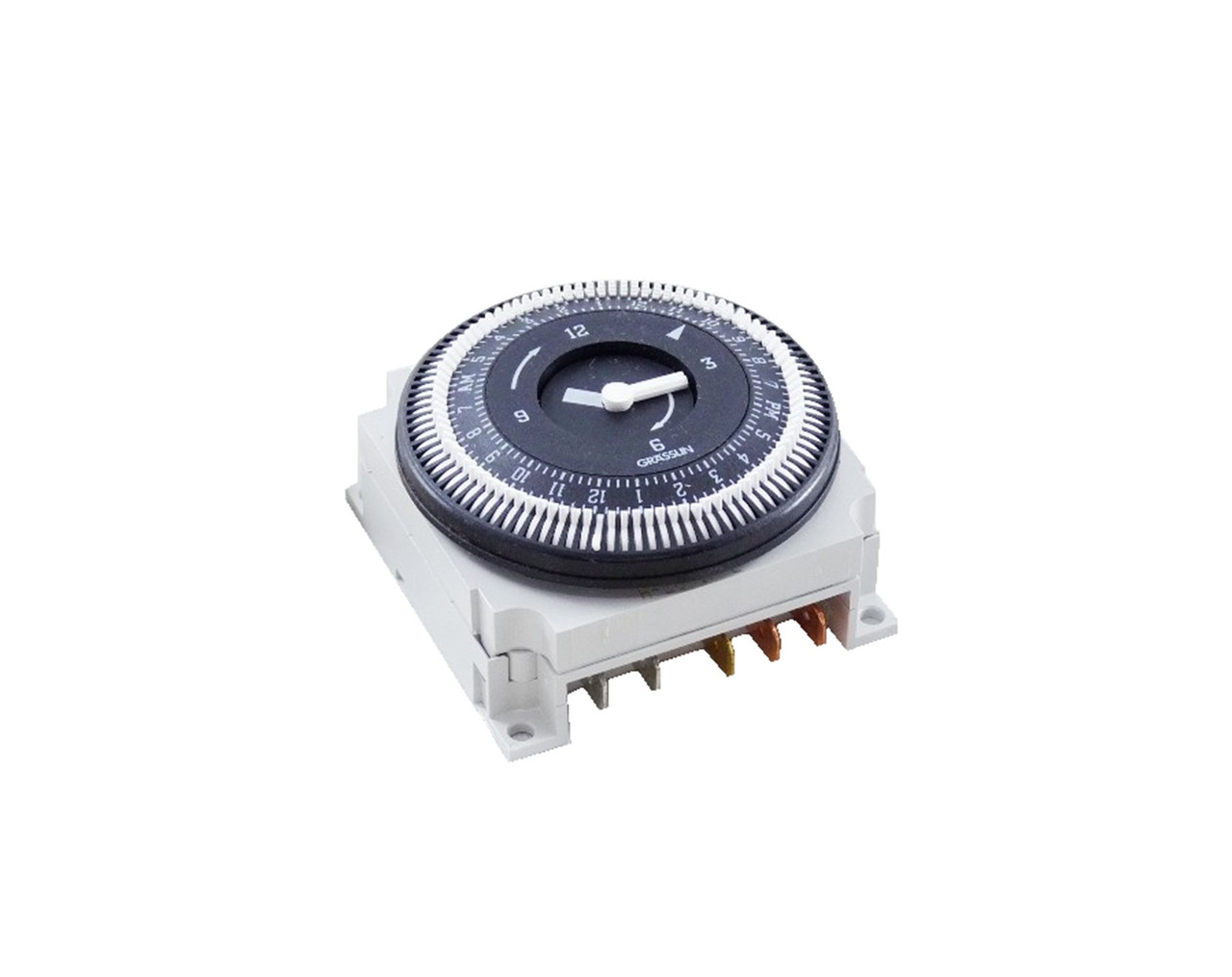

Grasslin FM/1 QTUZ Time Switch, 24 Hour

This is a 24 hour timer which may be used for multiple timing configurations. Each tripper controls a 15 minute section of the day. The on time is controlled by pulling each 15 minute tripper outward from the face.

Grasslin FM1-QTUZ-120 Features:

• 21 Amp
• SPDT Switch
• 24 Hour Maximum Time Cycle
• 15 Min Timing Interval
• 120V AC/DC, 50/60Hz Input Voltage
• -4 to 131 Deg F Operating Temperature
• Panel Mounting Options
• 0 to 95%, non-condensing Operating Humidity
• 2-23/64" H x 2-23/64" W x 1-1/4" D (including dial)
