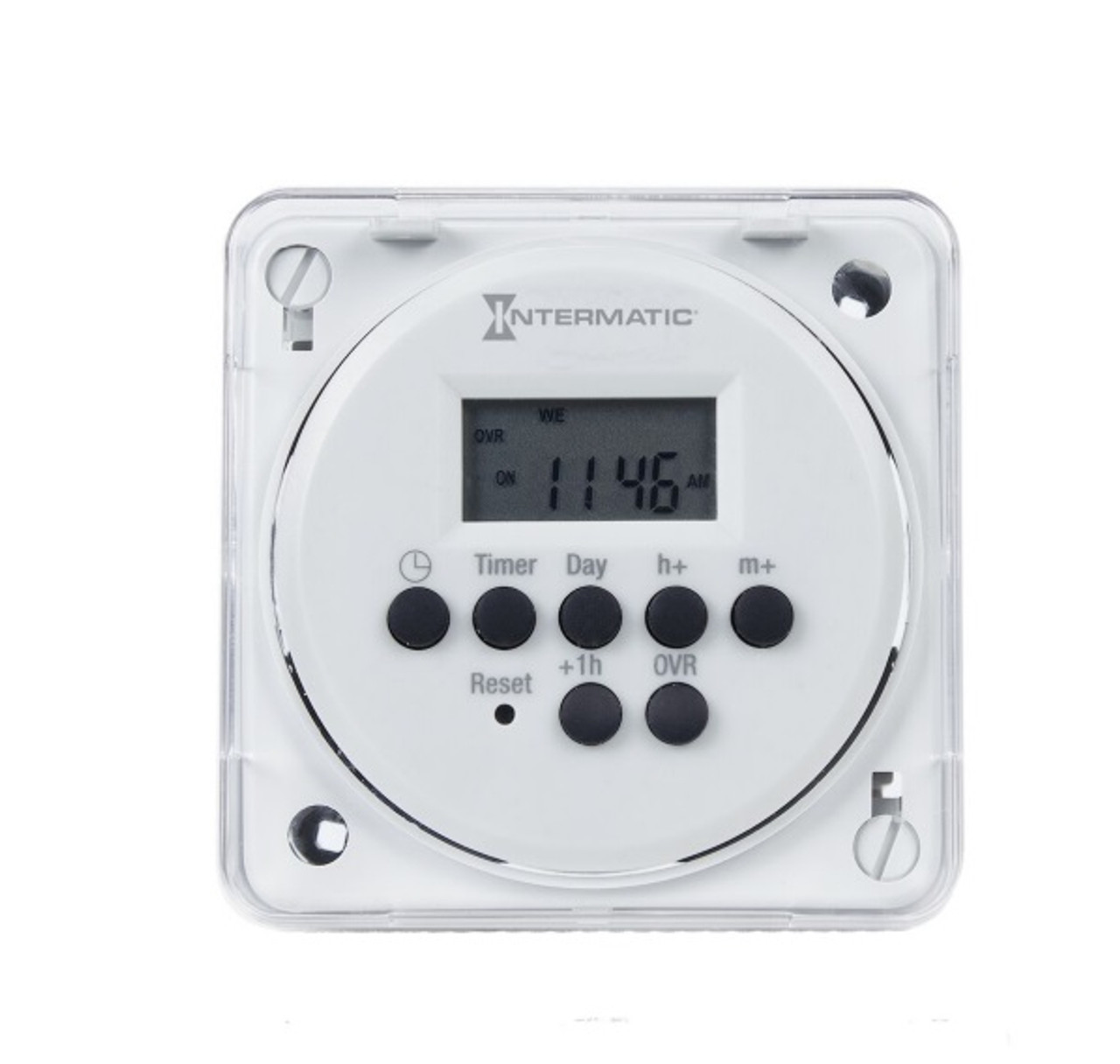

Grasslin FM1D20E-LV Electronic Time Switch

The FM1D20 series products are 24-Hour/7-Day modules with heavy-duty relay contacts for switching low or line voltage loads. The timers are suitable for time-of-day control of pumps, fans, heaters, HVAC control circuits, lighting, machinery, and many other types of commercial, industrial, and agricultural equipment.

Grasslin FM1D20E-LV Features:

• 15 Amp, 277Vac
• 20 Setpoint Programs
• 4VA Power Consumption
• SPDT Relay Switch
• -13 to 131 Deg F Operating Temperature
• 12VDC, 24VAC, 50/60Hz Voltage
• Flush Mounting

Technical Literature:

Intermatic Grasslin FM1D20E-LV Electronic Timer Control
