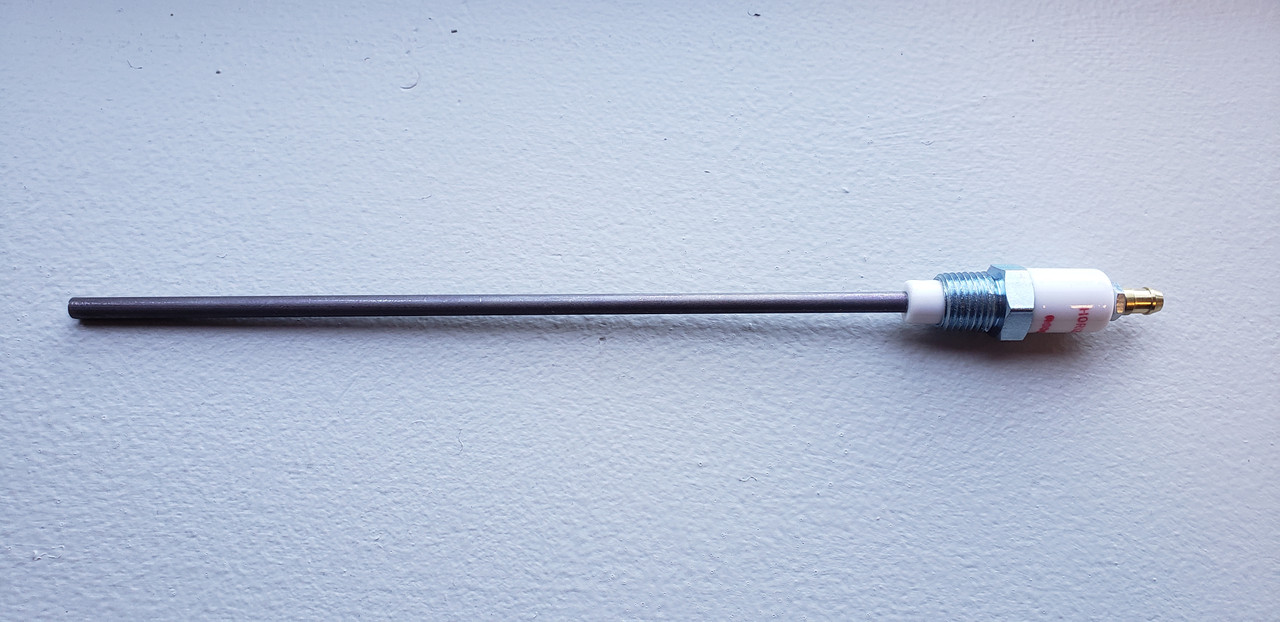

Horizon R6062 Flame Rod, 1/4" NPT, 7.5" Long

The Horizon R6062 flame rod is for use with burners with flame rod detection. Typically used on line style burners. The flame rod detectors can be trimmed to length in the field to sense the flame at varying operating conditions. This will account for varying flame length at low & high fire to minimize nuisance faults.

Applies to the following Maxon burners:

• APX 0.5
• APX 1.0
• APX 1.5
• APX 2.0
• APX 2.5
• APX 3.0
• APX 3.5
• APX 4.0
• APX 5.0

(Generic Alternative to Auburn FRS-4(7.5"), Crown CA435 & Maxon 18117)

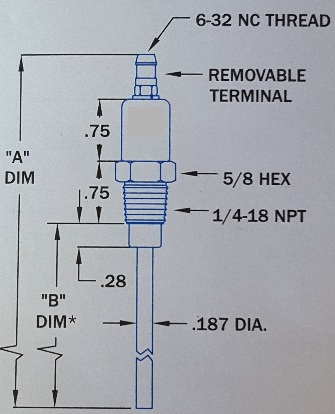

• "A" Dimension: 9.54" Ref
• "B" Dimension: 7.50"
