ICM ICM289 Furnace Control Module
ICM
- SKU:
- ICM289
- Condition:
- New
- Availability:
- Usually Ships in 1 to 2 Weeks

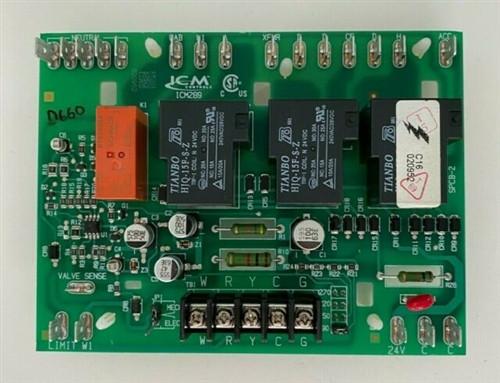

ICM ICM289 Furnace Control Module
ICM Furnace Control Module controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner. It is microprocessor-based and is designed for 100% gas shutoff in case if ignition failure. Model selection of 80+ and 90+ furnace operation and a reverse polarity protection. It functions with all 24 VAC thermostats and has a secondary brownout voltage protection. Heating and cooling fan functions in response to standard thermostat and provides diagnostic LEDs to aid in troubleshooting. (ICM furnace control module Lennox)
ICM ICM289 Features
- Line Volatge Range: 98-132 VAC @ 60Hz
- Control Voltage: 24 VAC @ 60Hz
- Cool Blower: 20A resistive @ 120 VAC
- Heat Blower: 20A resistive @ 120 VAC
- Inducer Blower: 5A resistive @ 120 VAC
Technical Literature:
https://www.icmcontrols.com/documents/ig_LII357.pdf
https://www.icmcontrols.com/documents/ss_LIS214.pdf
