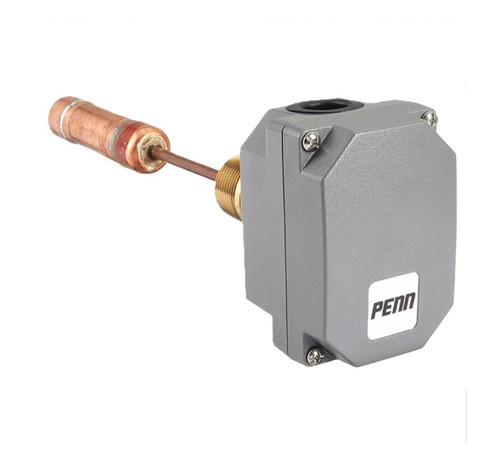

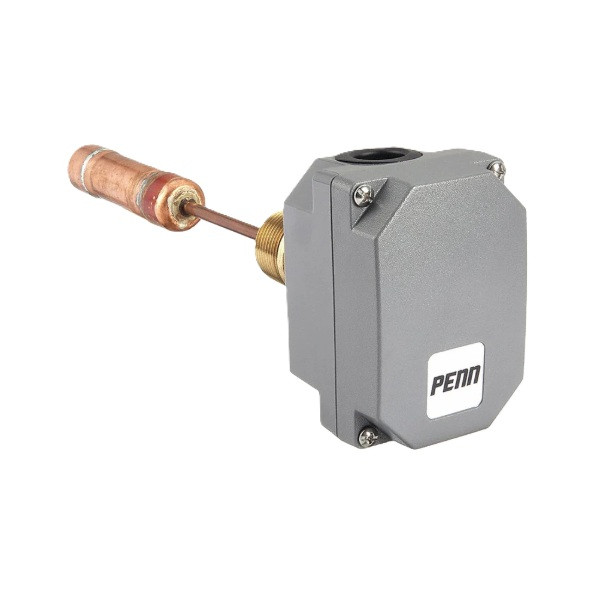

Johnson F263MAC-V01C Liquid Level Float Switch

The F263 can be wired to close one circuit and open another circuit when liquid level rises above or falls below the required level. The F263 has a NEMA 4 general purpose enclosure. Not for use with hazardous fluids or in hazardous atmosphere.

• SPDT snap-acting switch
• Rugged steel enclosure
• Copper float
• NEMA 4
• Indoor or Outdoor tanks
• 24-240Vac
• -20 to 250 Deg F
• Maximum Pressure: 100 PSIG

Technical Literature:

Johnson F263 Series Liquid Level Float Switch Catalog Page
