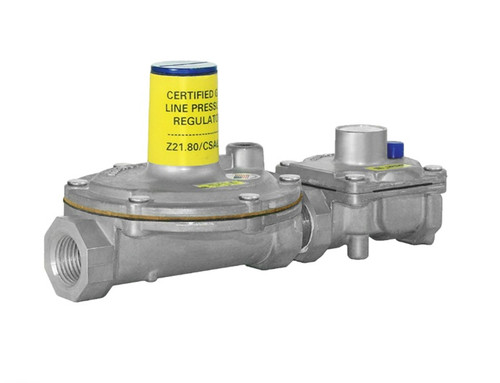

Maxitrol 325-7AL210D-10-N2 Gas Regulator, 1-1/4"

The 325-7 is designed especially for the growing segment of electronic ignition equipment, permits the utilization of greater capacities without sacrificing performance. The 325 Series regulator is for use on residential, commercial, and industrial applications where adequate inlet pressures are available. They are a high performance type regulator and can be used as a single stage regulator - reducing pounds pressure to normal burner pressure.

Maxitrol 325-7AL210D-10-N2 Features:

• 1-1/4" NPT
• 5 PSI Max Inlet Pressure
• Supplied with R8110-711 Spring (7-11" W.C. Outlet Pressure)
• 1,250,000 BTU/Hr Max capacity
• Over-Pressure Device

Technical Literature:

Maxitrol 325-L Series
