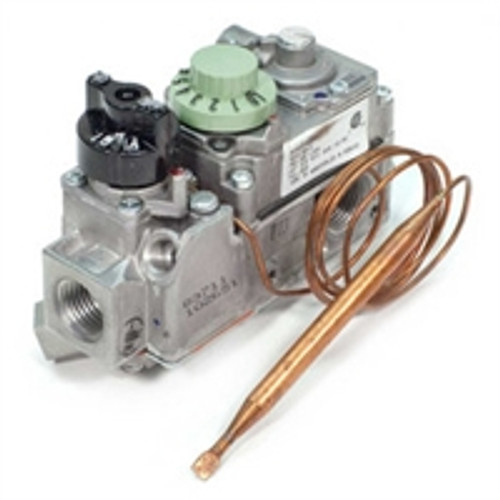

Robertshaw 700-205 1/2" Hydraulic Valve

Thermostatically controlled by a remote temperature sensing bulb with a remote temperature adjustment model available. Single capillary model with temperature adjustment knob on gas valve and also a remote type with dual capillary model designed for cabinet mounting. It includes two 1/2" x 3/8" reducer bushings. The valve type is a Snap action or snap throttle with a capacity based on 1000 Btu/cu. ft.

Robertshaw 700-205 Features

• 3.5" W.C. Pressure Regulation
• 100,00 BTU
• 1/2" x 3/8" Reducer Bushing
• 1/2" Inlet
• 36" Capillary Length
• 1/4" Pilot Tubing
• 1/2" Outlet
• 14" W.C. Maximum Inlet Pressure
• 58° to 90°F Dial Temperature
• 45° to 90°F Remote Temperature
