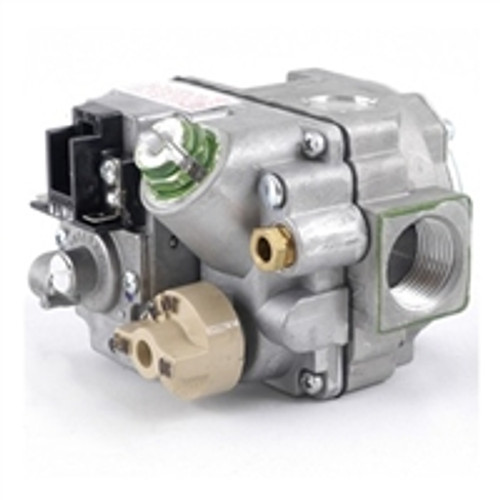

Robertshaw 700-406 24V Combination Valve

These valves feature a manual valve (gas cock), an automatic pilot safety valve, inlet/outlet screens, pilot outlet, pilot gas filter and pilot adjustment key. Regulated and nonregulated models are available. Models that have a safety magnet have a "notched or slotted" magnet for applications requiring the use of an ECO (Energy Cut-Off) switch. The automatic pilot safety valve is separate from the gas cock and provides gas shutoff in case of pilot outage. These combination valves have a pressure regulator installed that is set for natural gas (3.5" W.C.) To convert to L.P. gas, a regulator cover plate is included. Simply remove pressure regulator and install the regulator cover plate.

Robertshaw 700-406 Features

• Uni-Kit Pressure Regulation
• 300,000 BTU
• 300,000 BTU
• 2 NPT Reducer Busing
• 3/4" Inlet
• 3/4" Outlet
• 24 VAC / 12 VDC
• 50-60 Hz
• Straight-thru Side Outlets
