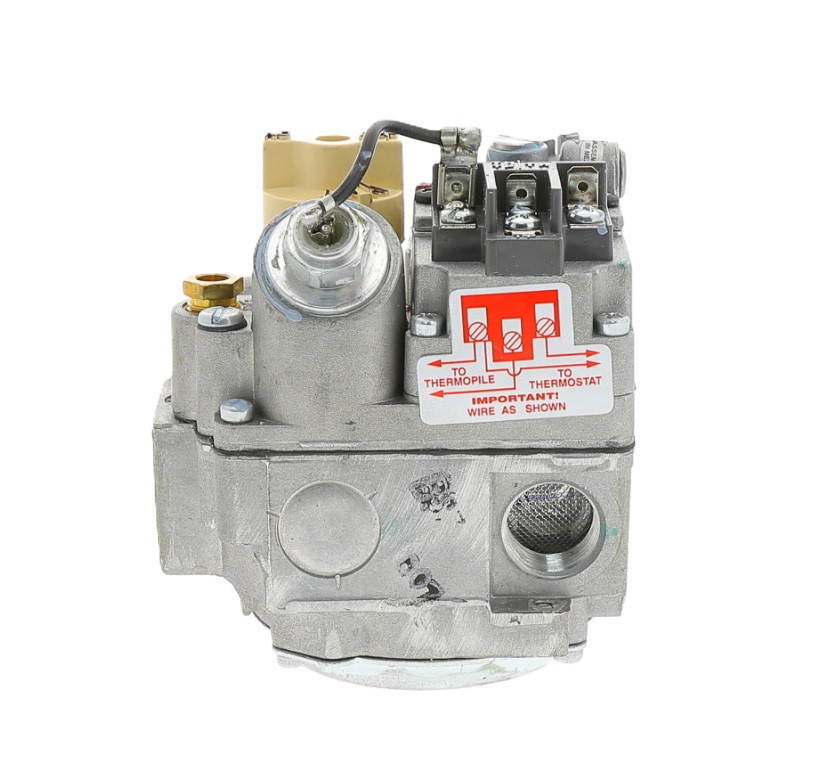

Robertshaw 700-502 1/2" Millivolt Combo Gas Valve

The 700 millivolt gas valves are wall thermostat actuated combination gas valves. These valves feature a manual valve (gas cock), an automatic pilot safety valve, inlet/outlet screens, pilot outlet, pilot gas filter and pilot adjustment key. Regulated and nonregulated models are available. Models that have a safety magnet have a "notched or slotted" magnet for applications requiring the use of an ECO (Energy Cut-Off) switch. The automatic pilot safety valve is separate from the gas cock and provides gas shutoff in case of pilot outage. These combination valves have a pressure regulator installed that is set for natural gas (3.5" W.C.) To convert to L.P. gas, a regulator cover plate is included. Simply remove pressure regulator and install the regulator cover plate.

Robertshaw 700-502 Features

• 3.5" W.C. Pressure Regulation
• 100,000 BTU
• 2 NPT Reducer Bushing
• 1/2" Inlet
• 1/2" Outlet
• 250mV - 750mV
