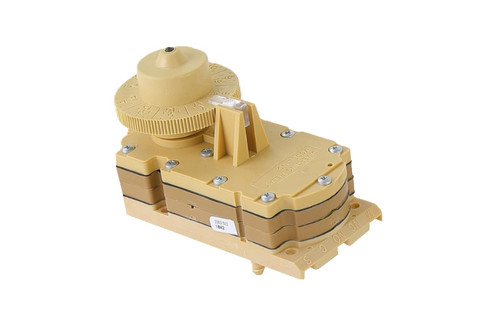

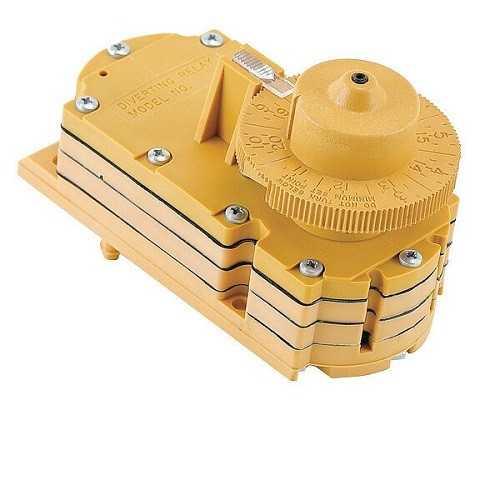

Schneider 2353-502 Diverting Relay 4-20 PSIG Set Point

The 2353-502 diverting relay is a snap-acting device with adjustable set points. It is designed for a variety of switching and interlocking functions in pneumatic control systems where the application requires one or more of the following functions: feeding and exhausting branch lines, diverting a supply line to either one of two branch lines, or diverting one of two supply lines to one branch line. The primary function of these devices is to convert a proportional pneumatic signal, at a predetermined setting, into a positive signal for a final control device.

Features:

• Main Air Pressure - 15 to 25psig operating, 30 psig maximum
• Air Capacity - 60 SCFH
• Air Consumption - 29 SCIM
• Maximum Ambient Temperature - 140F
